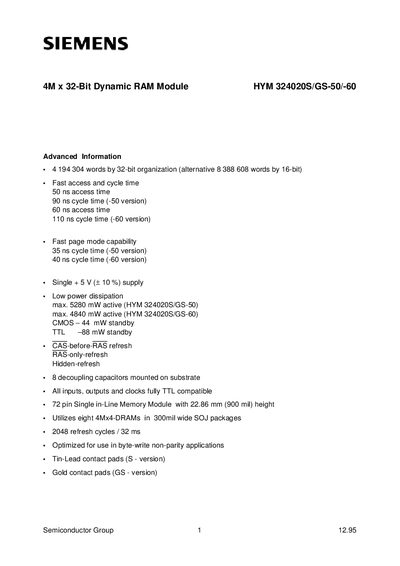

Siemens HYM 324020S/GS-50/-60 4M x 32-Bit DRAM Module Datasheet
The Siemens HYM 324020S/GS-50/-60 is a 4M x 32-Bit Dynamic RAM module organized as 4,194,304 words by 32-bit. It is a 72-pin Single In-Line Memory Module (SIMM) that utilizes eight 4M x 4 DRAMs in 300mil wide SOJ packages mounted on a PCB with eight 0.2 uF ceramic decoupling capacitors. The module supports both 50 ns and 60 ns access time versions and is optimized for byte-write non-parity applications.
Read onlineSiemens GS-50 specifications
| Organization | 4M x 32-Bit (4,194,304 words by 32-bit) |
|---|---|
| Capacity | 16 MByte |
| Package Type | 72-pin Single In-Line Memory Module |
| Access Time (-50 version) | 50 ns |
| Access Time (-60 version) | 60 ns |
| Supply Voltage | +5 V (+10 %) |
| Refresh Cycles | 2048 refresh cycles / 32 ms |
Source: Siemens HYM 324020S/GS-50/-60 4M x 32-Bit DRAM Module Datasheet
All Siemens GS-50 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the package height of the module?
The module has a height of 22.86 mm (900 mil).
From: Siemens HYM 324020S/GS-50/-60 4M x 32-Bit DRAM Module Datasheet
Can the module be used as a 16-bit module?
Yes, it can be used as an 8,388,608 words by 16-bit module by connecting specific data pins.
From: Siemens HYM 324020S/GS-50/-60 4M x 32-Bit DRAM Module Datasheet
What is the height of the module?
The single sided module has a height of 20.32 mm (800 mil).
From: Siemens HYM 322005S/GS-50/-60 EDO DRAM Module Datasheet
What are the available ordering codes?
The available types include HYM 322005S-50, HYM 322005S-60, HYM 322005GS-50, and HYM 322005GS-60.
From: Siemens HYM 322005S/GS-50/-60 EDO DRAM Module Datasheet
What package type does the module use?
It is a 72‑pin Single In‑Line Memory Module (L‑SIM‑72‑12).
From: Siemens HYM364025S/GS-50/-60 4M x 36-Bit EDO DRAM Module Datasheet
What is the operating temperature range?
The module operates from 0 °C to +70 °C.
From: Siemens HYM364025S/GS-50/-60 4M x 36-Bit EDO DRAM Module Datasheet
