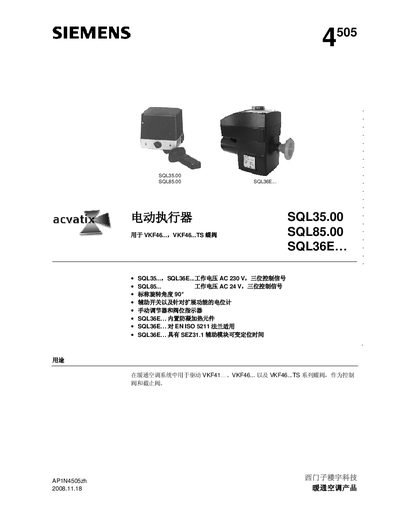

Siemens SQL35.00/SQL85.00/SQL36E Electric Actuator User Manual
This manual provides the overview, installation instructions, wiring diagrams and technical specifications for Siemens electric actuators of the SQL35.00, SQL85.00 and SQL36E series used in HVAC applications. It includes model‑specific data such as working voltage, control signal type, rotation angle and torque.
The document also covers optional accessories, auxiliary switches, heating elements for anti‑condensation and the required safety and environmental compliance information. Maintenance procedures and troubleshooting guidance are included for field technicians. This manual is written in Chinese.
Siemens SQL35 specifications
| Working voltage (SQL85.00) | AC 24 V |
|---|---|
| Nominal rotation angle | 90° |
| Control signal | Three‑position |
| Torque (SQL35.00) | 20 Nm |
| Weight (SQL35.00) | 1.4 kg |
| Maximum medium temperature | 120 °C |
Source: Siemens SQL35.00/SQL85.00/SQL36E Electric Actuator User Manual
All Siemens SQL35 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can the rotation direction be reversed?
To reverse the rotation direction, change the connections of terminals Y1 and Y2.
From: Siemens SQL35.00/SQL85.00/SQL36E65/SQL36E110 Electric Actuator Manual
What is the heating element power rating?
The built‑in heating element is rated at 5 W, powered from AC 230 V.
From: Siemens SQL35.00/SQL85.00/SQL36E65/SQL36E110 Electric Actuator Manual
What is the nominal rotation angle of these actuators?
The nominal rotation angle is 90 degrees.
From: Siemens SQL35.00/SQL85.00/SQL36E Electric Actuator User Manual
