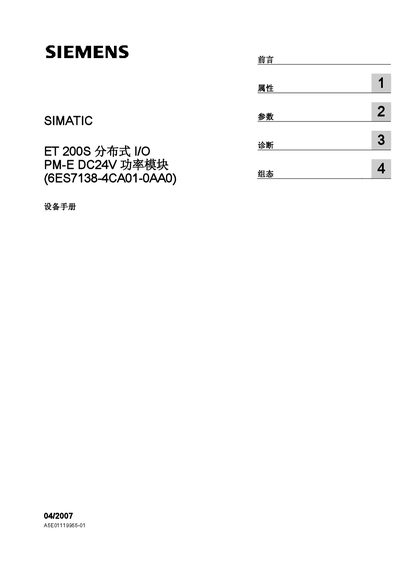

SIEMENS SIMATIC ET 200S Distributed Type I/O PM-E DC24V power module (6ES7138-4CA01-0AA0) solutions manual
The document is a device manual for the PM‑E DC24V power module used in the SIMATIC ET 200S distributed I/O system. It contains safety technical tips, warnings for qualified personnel, and guidance on proper installation, transport, storage and handling.\n\nTechnical information includes the module’s electrical ratings, wiring terminal assignments, block diagram, parameter settings, diagnostic LED functions and configuration address space. The manual also lists compatible terminal modules and provides contact details for technical support and training. This manual is written in Chinese.
Read onlineSiemens DC24V specifications
| Number of inputs | 4 |
|---|---|
| Rated input voltage | 24 VDC |
| Width | 15 mm |
| Weight | ≈35 g |
| Power consumption | 0.7 W |
| Output current rating | 500 mA |
| Maximum unshielded cable length | 600 m |
| Maximum shielded cable length | 1,000 m |
