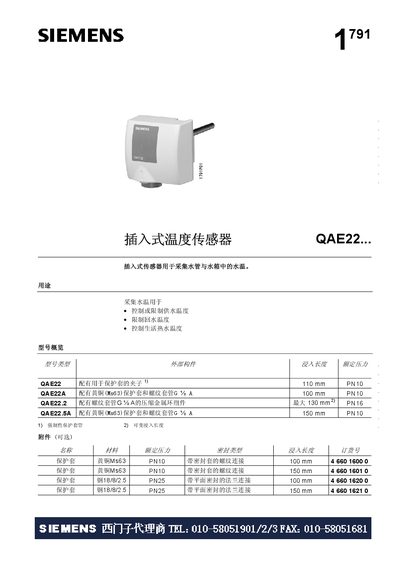

Siemens QAE22 Insert Type Temperature Sensor User Manual
The manual describes the Siemens QAE22 series of insert type temperature sensors, including variants QAE22A, QAE22.2 and QAE22.5A. It covers the sensor's purpose for water temperature measurement, ordering information, functional principle, and mechanical design.
Technical data such as temperature range, sensitive element, time constants, material construction, and protection ratings are listed. Detailed installation instructions, electrical connection guidance, and internal wiring diagrams are provided to ensure correct mounting and integration with control systems. This manual is written in Chinese.
Siemens QAE22 specifications
| Temperature range | -30 to +130 °C |
|---|---|
| Sensitive element | LG‑Ni 1000 |
| Time constant (with protective sleeve) | ≈30 s |
| Time constant (without protective sleeve) | ≈8 s |
| Insertion rod material | Stainless steel DIN 1‑440 |
| Protective sleeve material | Brass (Ms63) |
| Safety rating | EN 60730 |
| Weight (QAE22) | 0.155 kg |
| Weight (QAE22.2) | 0.178 kg |
| Weight (QAE22A) | 0.198 kg |
| Weight (QAE22.5A) | 0.215 kg |
Source: Siemens QAE22 Insert Type Temperature Sensor User Manual
All Siemens QAE22 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What temperature range does the QAE22 sensor measure?
The sensor measures temperatures from –30 °C to +130 °C.
From: Siemens QAE22 Insert Type Temperature Sensor User Manual
How should the sensor be installed for supply water temperature control?
If the pump is on the supply line, install the sensor directly behind the pump; if the pump is on the return line, install it 1.5–2 m after the mixing valve.
From: Siemens QAE22 Insert Type Temperature Sensor User Manual
When is a flat‑seal protection sleeve required for the QAE22 sensor?
A flat‑seal protection sleeve must be used when the rated pressure exceeds PN10 or the temperature exceeds 100 °C.
From: Siemens QAE22 Insert Type Temperature Sensor User Manual
What is the minimum insertion length for the sensor?
The insertion length must be at least 50 mm.
How should the QAE22.2 sensor be tightened during installation?
Rotate the nut 1½ turn until strong resistance, loosen it, then tighten an additional ¼ turn.
