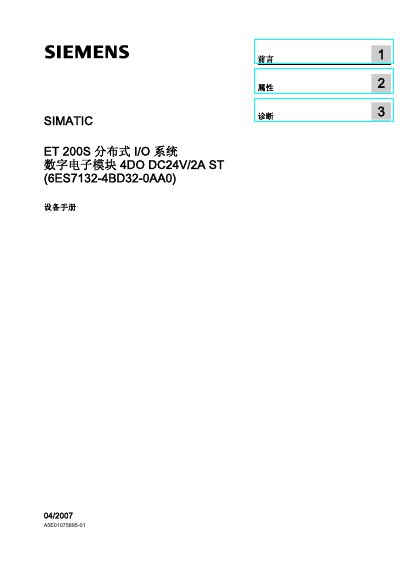

This document is a manual for the SIMATIC ET 200S distributed I/O system digital electronic module 4DO DC24V/2A ST (6ES7132-4BD32-0AA0) produced by Siemens. The manual includes information about the attributes, diagnostics, and safety instructions of the device.
The document is a device manual for the Siemens ET200S 4DO DC24V/2A ST digital I/O module. It contains safety instructions, installation guidance, and an overview of the module’s functions and supported terminal modules. The manual is intended for qualified personnel who install, commission, and maintain the module.
Key technical data such as output current, rated voltage, dimensions, power consumption, and cable length limits are listed, together with a block diagram, terminal assignment tables, and LED diagnostic codes. The manual also provides contact information for technical support and recycling instructions. This manual is written in Chinese.
| Number of digital outputs | 4 |
|---|---|
| Output current per channel | 2 A |
| Rated load voltage | 24 VDC |
| Module weight | ≈ 40 g |
| Maximum shielded cable length | 1000 m |
| Typical power consumption | 1.6 W |
The module provides four digital outputs.
The rated load voltage is 24 VDC.
Shielded cables can be up to 1000 m long.
