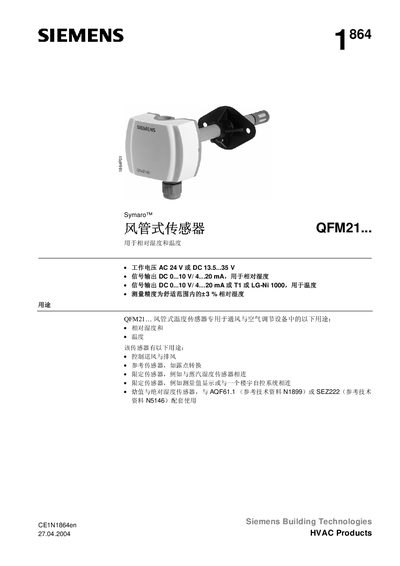

Siemens QFM21 Duct Sensor Manual
This manual describes the Siemens Symaro™ QFM21 series duct sensors used for measuring relative humidity and temperature in ventilation and air‑conditioning equipment. It covers the sensor’s operating principle, signal outputs, measurement ranges, accuracy, and environmental ratings.
The document includes installation guidance, engineering notes on power supply and cabling, construction details, connector terminal assignments, and a full table of technical data for each reference model (e.g., QFM2100, QFM2120, QFM2140). This manual is written in Chinese.
Siemens QFM21 specifications
| Working voltage | AC 24 V ±20 % or DC 13.5 … 35 V |
|---|---|
| Humidity measurement range | 0 % … 100 % RH |
| Signal output (humidity) | DC 0 … 10 V or 4 … 20 mA |
| Signal output (temperature) | DC 0 … 10 V |
| Accuracy (humidity) | ±3 % RH in comfort range |
Source: Siemens QFM21 Duct Sensor Manual
