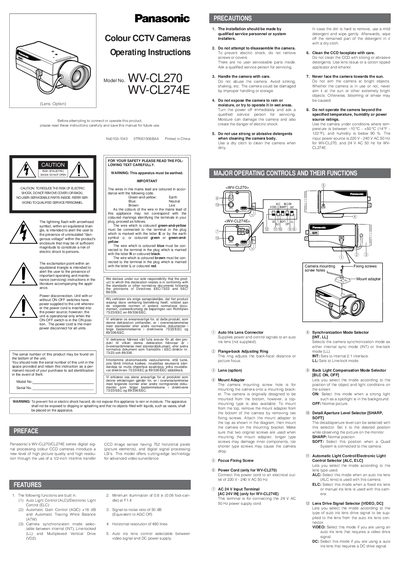

Panasonic WV-CL270 and WV-CL274E User Manual
This manual begins with safety warnings, including electric‑shock cautions and grounding requirements, and explains the need for qualified service personnel during installation. It describes the camera’s features such as a 1/2‑inch interline transfer CCD, auto light control, and selectable synchronization modes.
The document then covers installation and wiring, detailing power connections for the 220‑240 V AC version (WV‑CL270) and the 24 V AC version (WV‑CL274E), connector pin assignments for the auto‑iris lens, and mounting procedures. A specification table lists key performance data, and sections on standard and optional accessories complete the guide.
Panasonic WV-CL270 specifications
| Image sensor resolution | 752 (H) x 582 (V) pixels, interline transfer CCD |
|---|---|
| Horizontal resolution | 480 lines |
| Minimum illumination | 0.8 Ix (0.08 foot‑candle) at F1.4 |
| Power source (WV‑CL270) | 220 V‑240 V AC 50 Hz, 3.8 W |
| Power source (WV‑CL274E) | 24 V AC 50 Hz, 3.5 W |
| Dimensions (without lens) | 67 mm W × 65 mm H × 123 mm D |
All Panasonic WV-CL270 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How should the power cord be connected for the WV‑CL270?
Connect the power cord to an electrical outlet of 220 V‑240 V AC 50 Hz.
What type of lens mount does the camera use?
The camera uses a CS‑mount (1"‑32UN) and the lens weight must be less than 450 g.
What is the minimum illumination required for color mode?
The camera can capture color images at a minimum illumination of 0.2 Lux when using an F0.75 lens.
What horizontal resolution does the WV‑CL270 series provide?
It delivers a horizontal resolution of 480 lines.
