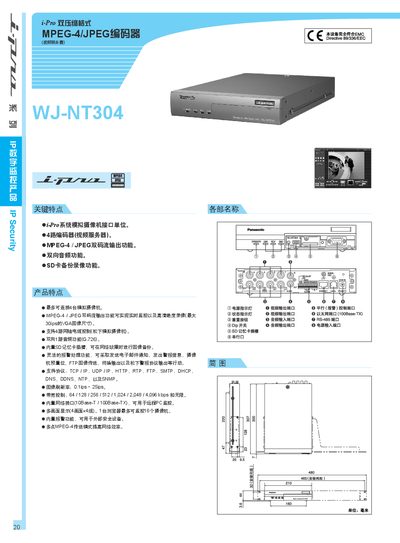

Panasonic WJ-NT304 Encoder User Manual
This manual describes the Panasonic WJ-NT304 video encoder, including its dual MPEG‑4/JPEG stream output, two‑way audio, and SD‑card backup capabilities. It outlines network connectivity options, alarm handling, and supported video formats for real‑time monitoring and high‑resolution recording.
Technical details such as audio/video interfaces, power requirements, environmental limits, and physical dimensions are listed, along with configuration steps via a web browser and supported network protocols. This manual is written in Chinese.
Panasonic WJNT304 specifications
| Audio Input | -10 dBV, 10 kΩ, unbalanced |
|---|---|
| Audio Output | -10 dBV, 600 Ω, unbalanced |
| Video Input | 10 V p‑p / 75 Ω x 47 PAL composite signal |
| Video Output | 10 V p‑p / 75 Ω x 47 PAL composite signal |
| Image Resolution | JPEG 640×480 / 320×240, MPEG‑4 640×480 / 320×240 |
| Image Refresh Rate | 0.1 fps – 25 fps |
| Power Consumption | 12 W |
| Operating Temperature | -10 °C to +50 °C |
| Weight | ≈2.3 kg |
| Dimensions | 210 mm W × 44 mm H × 300 mm D |
| Network Interface | 10Base‑T/100Base‑TX, RJ45 |
| SD Card Support | 64 MB – 2 GB SD cards |
| Audio Compression | G.726 ADPCM (bidirectional) |
| Maximum Cameras | 16 cameras (4×4 layout) |
| Alarm Inputs | 16 alarm inputs, 16 camera alarms, 4 video‑loss alarms |
