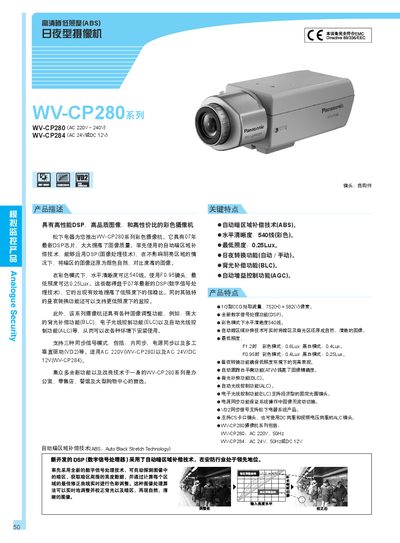

Panasonic WV-CP280 WV-CP284 Color CCTV Cameras Operating Instructions
This manual provides operating instructions for the Panasonic WV-CP280 and WV-CP284 surveillance color CCTV cameras. These models are equipped with a 1/3 inch CCD solid-state image sensor, offering 768 horizontal pixels and 540 TV lines of high resolution. The cameras feature an adaptive black stretch function and a minimum illuminance of 0.8 lx (F1.4) due to the newly-developed digital signal processor.
Read onlinePanasonic WV-CP280 specifications
| Image Sensor | 1/3 inch CCD solid-state image sensor |
|---|---|
| Horizontal Pixels | 768 |
| Resolution | 540 TV lines (horizontal) |
| Minimum Illuminance | 0.8 lx (F1.4) |
| Operating Temperature | -10 °C - +50 °C |
Source: Panasonic WV-CP280 WV-CP284 Color CCTV Cameras Operating Instructions
All Panasonic WV-CP280 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the minimum illuminance of the WV-CP280/WV-CP284?
The minimum illuminance is 0.8 lx (0.08 foot-candle) at F1.4.
From: Panasonic WV-CP280 WV-CP284 Color CCTV Cameras Operating Instructions
Can these cameras be used outdoors?
No, the manual states to use this product for indoor use only.
From: Panasonic WV-CP280 WV-CP284 Color CCTV Cameras Operating Instructions
What is the minimum illumination required for color mode?
The camcorder needs a minimum illumination of 0.4 Lux at an aperture of F0.95 in color mode.
Which synchronization modes does the WV‑CP280 support?
It supports three synchronization modes: internal sync, power sync, and multi‑field sync (VD2).
