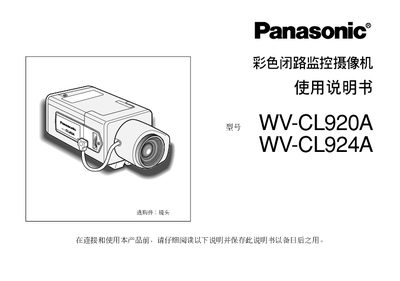

Panasonic WV-CL920A/WV-CL924A Color CCTV Camera Operating Instructions
This manual provides operating instructions for the Panasonic WV-CL920A (120 V AC) and WV-CL924A (12 V DC/24 V AC) series of digital color CCTV cameras. The devices feature a 1/2-inch frame interline transfer CCD image sensor with 768 horizontal pixels and utilize digital signal processing LSI for high picture quality.
Read onlinePanasonic WV-CL920A specifications
| Image Sensor | 1/2-inch frame interline transfer CCD |
|---|---|
| Horizontal Pixels | 768 horizontal pixels |
| Minimum Illumination (Color) | 0.14 lx with F1.4 lenses |
| Minimum Illumination (B/W) | 0.01 lx with F1.4 lenses |
| Horizontal Resolution (Color) | 480 lines |
| Horizontal Resolution (B/W) | 570 lines |
| Signal-to-noise ratio | 50 dB |
Source: Panasonic WV-CL920A/WV-CL924A Color CCTV Camera Operating Instructions
All Panasonic WV-CL920A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the input power source for the WV-CL920A?
The input power source is 120 V AC 60 Hz.
From: Panasonic WV-CL920A/WV-CL924A Color CCTV Camera Operating Instructions
What is the input power source for the WV-CL924A?
The input power source is 12 V DC or 24 V AC.
From: Panasonic WV-CL920A/WV-CL924A Color CCTV Camera Operating Instructions
What is the minimum illumination required for color mode?
The camcorder needs as little as 0.04 Lux in color mode at an aperture of F0.75 (0.1 Lux at F1.2).
Can the camcorder operate in both day and night modes?
Yes, it automatically switches between color (day) and black‑white (night) monitoring modes.
