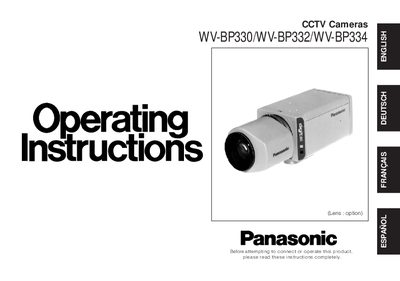

Panasonic WV-BP330 Series CCTV Camera Operating Instructions
This manual provides operating instructions for the Panasonic WV-BP330 series of digital CCTV cameras. The documents cover features such as Auto Light Control (ALC) and Electronic Light Control (ELC), back light compensation, and various external sync functions including Gen-Lock.
The guide details precautions for handling the camera to prevent damage from moisture or improper storage, explains major operating controls like synchronization modes and video level adjustments, and describes connection procedures for power and video signals. It also includes specifications regarding resolution, illumination requirements, and environmental ratings.
Panasonic WV-BP330 specifications
| Image Sensor Type | 1/3-inch interline transfer CCD image sensor |
|---|---|
| Horizontal Pixels | 768 horizontal pixels |
| Signal-to-noise ratio | 50 dB |
| Minimum Illumination (F1.4) | 0.08 lux |
| Horizontal Resolution | 570 lines |
| Operating Temperature Range | -10°C - +50°C (14°F - 122°F) |
| Operating Humidity | below 90% |
Source: Panasonic WV-BP330 Series CCTV Camera Operating Instructions
All Panasonic WV-BP330 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the power requirements for the WV-BP330, WV-BP332, and WV-BP334 models?
The WV-BP330 requires 120V AC 60Hz, the WV-BP332 requires 12V DC, and the WV-BP334 requires 24V AC 60Hz.
From: Panasonic WV-BP330 Series CCTV Camera Operating Instructions
What are the specified temperature and humidity limits for operating this camera?
You must operate the camera where the temperature is between -10°C and +50°C (14°F to 122°F) with humidity below 90%.
From: Panasonic WV-BP330 Series CCTV Camera Operating Instructions
What power source should be used for each camera model?
The WV‑BP330 uses a 220‑240 V AC 50 Hz supply, the WV‑BP332 requires a 12 V DC supply, and the WV‑BP334 operates from a 24 V AC 50 Hz source.
From: Panasonic WV-BP330/WV-BP332/WV-BP334 CCTV Camera User Manual
How can the fuse in the power plug be replaced?
Open the fuse compartment with a screwdriver, replace the fuse with a 13 A fuse approved by ASTA or BSI, and reinstall the fuse cover.
From: Panasonic WV-BP330/WV-BP332/WV-BP334 CCTV Camera User Manual
What is the minimum illumination required for the WV‑BP330 series camera?
The camera can capture clear images at 0.02 Lux when the aperture is set to F0.75 (and at 0.06 Lux at F1.2).
From: Panasonic WV-BP330 Series Security Camera Product Leaflet
Which lens mounts are compatible with the WV‑BP330 series?
The cameras support both C‑mount and CS‑mount lenses.
From: Panasonic WV-BP330 Series Security Camera Product Leaflet
