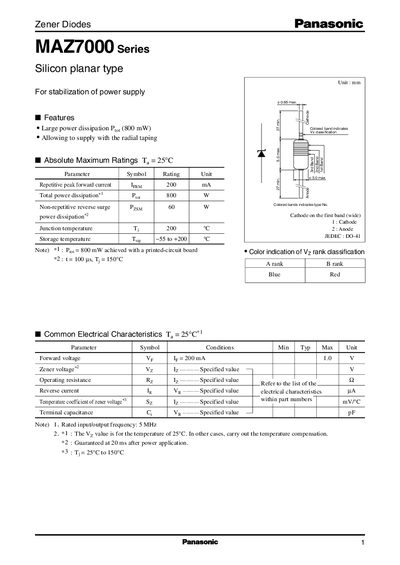

Panasonic MAZ7000 Series Zener Diodes Datasheet
Datasheet 4 pages · 58 KB · EN
This document provides technical data for the Panasonic MAZ7000 Series of silicon planar type zener diodes. These components are designed for power supply stabilization applications.
The datasheet details absolute maximum ratings, common electrical characteristics, and specific operating parameters such as forward voltage, zener voltage, reverse current, and terminal capacitance across various part numbers.
Panasonic MAZ7000 specifications
| Power dissipation (P) | 800 mW |
|---|---|
| Repetitive peak forward current | 200 mA |
| Junction temperature (Tj) | 200 °C |
| Storage temperature range | -55 to +200 °C |
| Forward voltage (VF) | 1.0 V |
All Panasonic MAZ7000 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the package type for these diodes?
The diodes use a JEDEC DO-41 package.
How is the Zener voltage classification indicated on the part?
A colored band indicates the Vz classification rank (Blue for A rank, Red for B rank).
What is the maximum power dissipation for the MAZ7000 series?
The series can dissipate up to 800 mW.
What is the rated input/output frequency of these Zener diodes?
The rated frequency is 5 MHz.
