Key facts
- Brand
- Panasonic
- Model
- 2SA0720
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-01
Start here

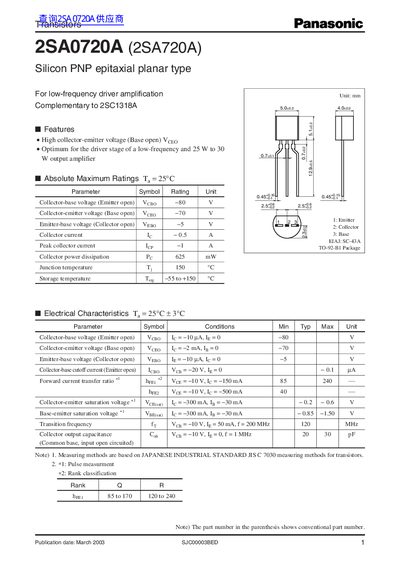

Panasonic 2SA0720A(2SA720A) Manual
Datasheet 3 pages · 64 KB · EN
The 2SA0720A is a silicon PNP epitaxial planar transistor designed for low‑frequency driver amplification stages, complementary to the 2SC1318A. The document lists its absolute maximum ratings, electrical characteristics, and typical application guidance.
In addition to the technical data, the sheet includes export and liability notices, storage temperature limits, and recommended operating conditions such as a 25 °C test temperature.
Panasonic 2SA0720 specifications
| Collector‑base voltage (Emitter open) | -80 V |
|---|---|
| Collector‑emitter voltage (Base open) | -70 V |
| Peak collector current | 1 A |
| Collector power dissipation | 625 mW |
| Junction temperature | 150 °C |
| Storage temperature range | -55 °C to +150 °C |
All Panasonic 2SA0720 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum collector‑emitter voltage?
The maximum collector‑emitter voltage (Base open) is -70 V.
What is the peak collector current rating?
The transistor can handle a peak collector current of 1 A.
Are there any export restrictions for this material?
Yes, an export permit must be obtained from the competent authorities of the Japanese Government.
