Key facts
- Brand
- Panasonic
- Model
- AV-HS400AN
- Category
- Network Switches
- Industry
- Computers
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-09
Start here

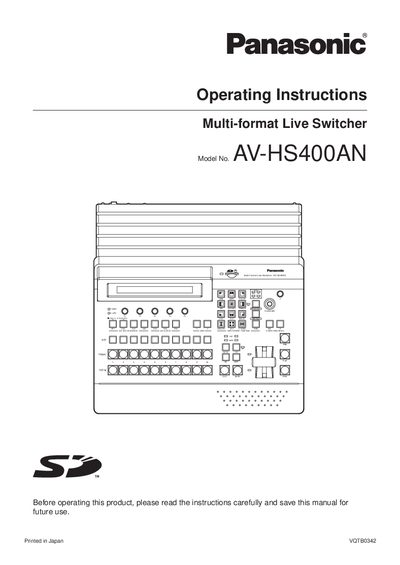

Panasonic AVHS400AN Multi-format Live Switcher Operating Instructions
This manual provides operating instructions for the Panasonic AVHS400AN Multi-format Live Switcher. It details the device's functions, including control panel operations, crosspoint switching, and various transition effects such as wipe, key, and picture-in-picture. The guide covers basic operations for background transitions, keying, and freezing signals, as well as system configuration and button assignments.
Read onlinePanasonic AV-HS400AN specifications
| Maximum video input lines | 8 |
|---|---|
| Standard video input lines | 4 SDI inputs |
| Maximum video output lines | 7 |
| Supported HD formats | 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Supported SD formats | 480/59.94i, 576/50i |
Source: Panasonic AV-HS400AN Multi-format Live Switcher User Manual
All Panasonic AV-HS400AN documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the Panasonic AVHS400AN?
It is a Multi-format Live Switcher.
From: Panasonic AVHS400AN Multi-format Live Switcher Operating Instructions
How should this apparatus be connected to power?
The three-pin plug must be inserted only into a standard three-pin power point which is effectively earthed through the normal household wiring.
From: Panasonic AVHS400AN Multi-format Live Switcher Operating Instructions
How many video input connectors are standard on the AV-HS400AN?
The unit comes standard with four input connectors.
From: Panasonic AV-HS400AN Multi-format Live Switcher User Manual
What type of battery is used in the AV-HS400AN?
It contains a CR Coin Cell Lithium Battery.
From: Panasonic AV-HS400AN Multi-format Live Switcher User Manual
