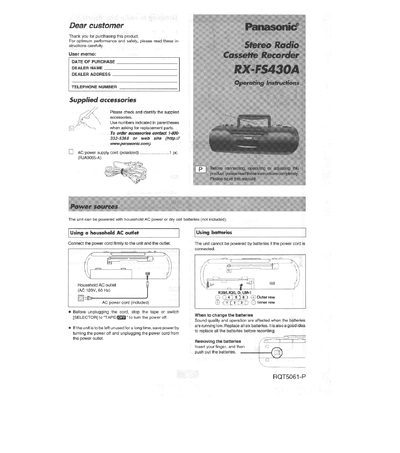

Panasonic RX-FS430A Stereo Radio Cassette Recorder Operating Instructions
This manual provides instructions for the Panasonic RX-FS430A stereo radio cassette recorder. It details how to operate the unit using either household AC power or dry cell batteries, and explains the functions for listening to FM and AM radio broadcasts.
Read onlinePanasonic RX-FS430 specifications
| FM Frequency range | 88-108 MHz |
|---|---|
| AM Frequency range | 525-1705 kHz |
| Tape recorder Track system | 4 track, 2 channel, stereo |
| Recording system | AC bias, magnet erase |
| Monitor system | Variable sound monitor |
| Frequency range (Monitor) | 70~10000 Hz |
| Power requirement | AC 120 V, 60 Hz |
| Battery requirement | 9 V (6 "D" size batteries) |
| Speakers | 2 Woofers; 10 cm (4") 2 Tweeters; 1.5m (%e") |
| Dimensions | 460x 149x149 mm |
| Weight | 2.4 kg without batteries |
Source: Panasonic RX-FS430 Stereo Radio Cassette Recorder Operating Instructions
All Panasonic RX-FS430 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Can the unit be powered by batteries if the power cord is connected?
No, the unit cannot be powered by batteries if the power cord is connected.
From: Panasonic RX-FS430A Stereo Radio Cassette Recorder Operating Instructions
What should be done if FM stereo reception is poor?
Set the BAND to FM to reduce noise and provide clear reception, though stereo sound will not be heard.
From: Panasonic RX-FS430A Stereo Radio Cassette Recorder Operating Instructions
What batteries are required to operate the unit?
The unit requires six "D" size (R20/LR20 or equivalent) batteries.
From: Panasonic RX-FS430 Stereo Radio Cassette Recorder Operating Instructions
Can the unit be operated on AC power?
Yes, connect the included AC power cord to the household AC outlet and the AC socket of the unit.
From: Panasonic RX-FS430 Stereo Radio Cassette Recorder Operating Instructions
