Start here

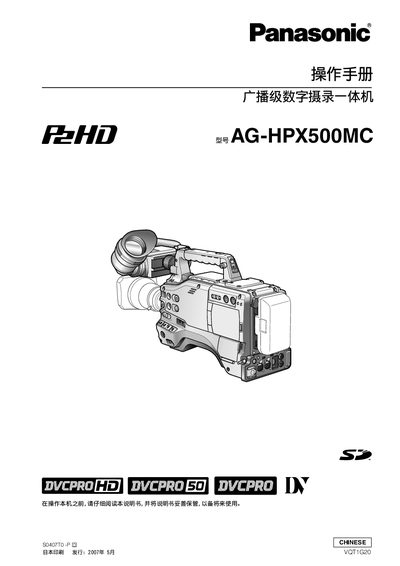

Panasonic AG-HPX500MC User Manual
This manual covers the Panasonic AG-HPX500MC broadcast‑grade digital camcorder. It introduces the camera’s interchangeable 2/3‑inch lens system, 3‑CCD sensor, and high‑definition recording capabilities, and explains how to set up and operate the device safely.
Key sections include safety precautions, component descriptions, recording and playback functions, menu operation, external connections (HD‑SDI, IEEE‑1394, USB, audio), maintenance procedures, and detailed technical specifications such as LCD monitor size, power requirements, and audio capabilities. This manual is written in Chinese.
Panasonic AG-HPX500MC specifications
| LCD Monitor | 3.5‑inch color LCD, 210,000 pixels (4:3) |
|---|---|
| Audio Recording | 48 kHz / 16‑bit uncompressed, 4‑channel |
| Power Input (Remote) | Unregulated 12 V, max 0.75 A |
| P2 Card Slots | Four slots, each holding a P2 card |
All Panasonic AG-HPX500MC documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many P2 card slots does the camcorder have?
The AG-HPX500MC has four P2 card slots for expanded HD recording.
What type of LCD monitor is built into the camcorder?
It features a 3.5‑inch color LCD monitor with 210,000 pixels in a 4:3 aspect ratio.
How many P2 slots does the AG‑HPX500MC have?
The camera provides four P2 slots for recording.
What type of sensor is used in the AG‑HPX500MC?
It uses a 3‑CCD sensor with a 273 mm diagonal.
