Start here

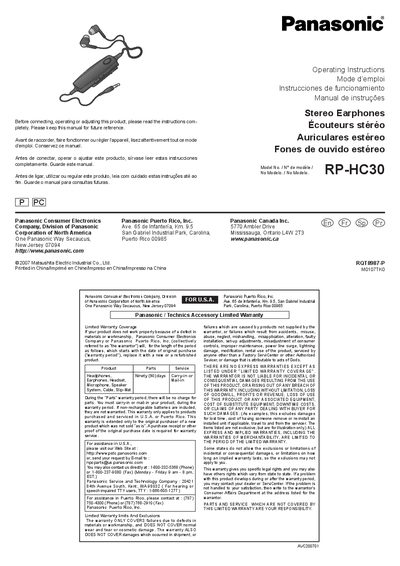

Panasonic RP-HC30 Stereo Earphones Operating Instructions
This manual provides operating instructions for the Panasonic RP-HC30 stereo earphones. It details how to install the included AAA batteries and explains the functions of the power switch and operation indicator.
The document also describes two key features: a noise canceling function that reduces low-frequency environmental noises by a fourth, and a monitor function that allows users to hear ambient sound through the microphone instead of music.
Panasonic RP-HC30 specifications
| Driver units | 40 mm (1-9/16 in.) |
|---|---|
| Impedance | 56 Ω |
| Sensitivity | 100 dB/mW |
| Frequency response | 8 Hz - 22 kHz |
| Level of active noise reduction | more than 18 dB at 300 Hz |
| Power handling capacity | 200 mW |
| Power requirement | DC 1.5V (R03/LR03, AAA) |
| Battery life | 17 hours (R03), 35 hours (LR03) |
| Cord length | 2m (6.6 ft) |
| Plug size | 3.5mm (1/8 in) |
| Mass (net) | 230g (8.1 oz.) |
Source: Panasonic RP-HC300 Stereo Headphones Operating Instructions
All Panasonic RP-HC30 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of batteries are required?
The headphones require R03/LR03 (AAA) batteries.
From: Panasonic RP-HC300 Stereo Headphones Operating Instructions
How long does the battery last?
Battery life is 17 hours with R03 batteries and 35 hours with LR03 batteries.
From: Panasonic RP-HC300 Stereo Headphones Operating Instructions
What type of batteries are required for these earphones?
The unit requires RO3/LRO3 or AAA batteries, which are included in the package.
From: Panasonic RP-HC30 Stereo Earphones Operating Instructions
What happens if the battery is worn down?
The noise canceling function becomes less effective as the battery wears down.
From: Panasonic RP-HC30 Stereo Earphones Operating Instructions
