AV-HS400A is a multi-format live switcher that supports multiple formats and meets the needs of users.

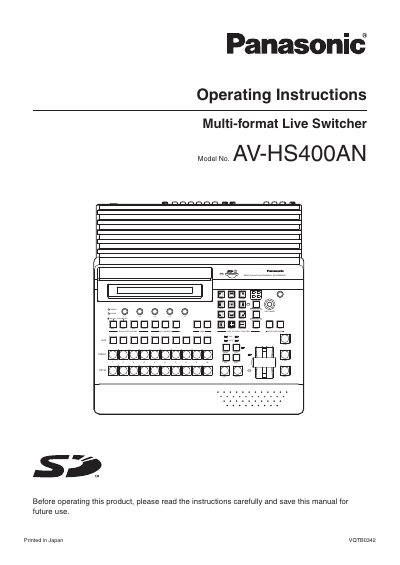

The AV-HS400AN is a 1 ME digital video switcher that supports multiple HD and SD formats, up to ten‑screen multi‑view display, and a range of transition effects such as wipe, mix, DVE, and keying. It includes standard SDI inputs and outputs, with optional boards for additional analog component, DVI‑I, and composite signals, and it can store still images on SD memory cards for use as backgrounds or key material.
This manual covers safety precautions, installation steps, detailed descriptions of each functional area (control panel, crosspoint, wipe, key, PinP, DSK, etc.), basic and advanced operation procedures, input/output signal configuration, system and network settings, external interface connections, and a full specifications table. Appendices provide a glossary and reference information.
| Maximum video input lines | 8 |
|---|---|
| Standard video input lines | 4 SDI inputs |
| Maximum video output lines | 7 |
| Supported HD formats | 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Supported SD formats | 480/59.94i, 576/50i |
The unit comes standard with four input connectors.
It contains a CR Coin Cell Lithium Battery.
Use the product between 32 °F and 104 °F (0 °C to 40 °C).
