Key facts
- Brand
- Panasonic
- Model
- RX-DS5
- Category
- Other Electronics
- Documents
- 3
- Languages
- EN
- Last added
- 2012-07-03
Start here

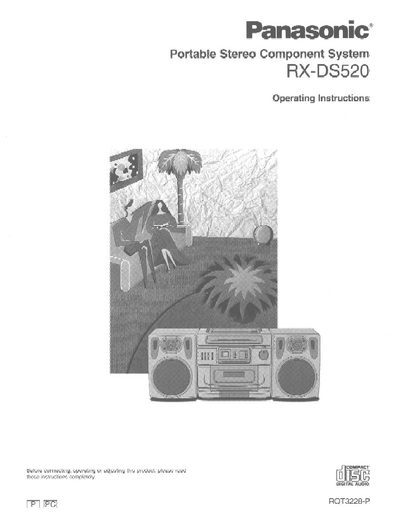

Panasonic RX-DS520 Portable Stereo Component System Operating Instructions
This document provides operating instructions for the Panasonic RX-DS520 Portable Stereo Component System. It details how to use the unit as either a one-piece portable radio cassette recorder or a three-piece component system by attaching or detaching the speaker system.
The manual covers essential topics including safety precautions, installation environment requirements, connecting speakers and power sources (AC or battery), and common operations for listening to radio, tape, and compact discs. It also includes sections on recording, general information regarding media, troubleshooting, maintenance, and technical specifications.
Panasonic RX-DS5 specifications
| Power Supply | AC 120V, 60 Hz |
|---|---|
| Battery Type | Six 'D' size batteries |
| Speaker Impedance | 4-8 ohms |
Source: Panasonic RX-DS515 Portable Stereo Component System Operating Instructions
All Panasonic RX-DS5 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I connect the speakers?
Connect the black speaker cable to the negative terminal and the red speaker cable to the positive terminal.
From: Panasonic RX-DS520 Portable Stereo Component System Operating Instructions
What type of batteries are required?
The unit requires six 'D' size (R20/LR20 or equivalent) batteries.
From: Panasonic RX-DS520 Portable Stereo Component System Operating Instructions
Can the unit be used as a one-piece portable stereo?
Yes, the unit can be used as a one-piece portable stereo radio cassette recorder.
From: Panasonic RX-DS515 Portable Stereo Component System Operating Instructions
How do I attach the speaker system?
Align the speaker with the main unit, interlock the grooves, and press down.
From: Panasonic RX-DS515 Portable Stereo Component System Operating Instructions
How do I save CD programs and radio stations?
Insert memory batteries to save stored CD programs and radio stations.
From: Panasonic RX-DS5 Portable Stereo CD System Operating Instructions
Can I record onto high and metal position tapes?
No, the unit is suitable for normal tapes but cannot record onto high and metal position tapes to their full potential.
From: Panasonic RX-DS5 Portable Stereo CD System Operating Instructions
