OMRON CPM2C Programmable Controller Operation Manual

This manual describes the basic functions and operation methods of the CPM2C programmable controller.

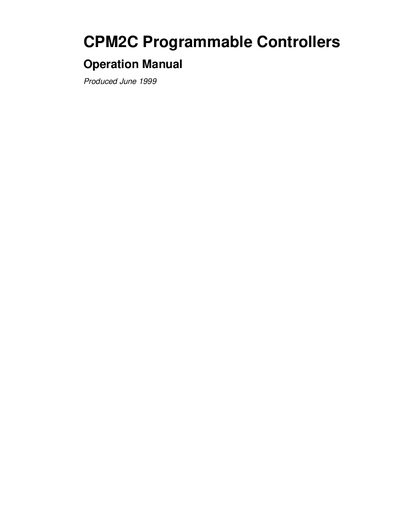

OMRON CPM2C Programmable Controller Operation Manual - cover page
Brand
CPM2C
Category
Automation control Equipment
Document type
User Manual
Language
English
Pages
158
File format
PDF
File size
2.2 MB
Published
08 May, 2012
Updated
30 September, 2023
Model
CPM2C
MD5 checksum
C31E1A9893D1E21E5F625AE3C24CB0E3
PDF
OMRON CPM2C Programmable Controller Operation Manual PDF

About this manual

The CPM2C is a compact, high‑speed programmable controller designed for systems requiring 10 to 120 I/O points. This manual covers safety precautions, system configuration, installation, wiring, and basic operation of the controller and its units.

It is intended for personnel responsible for installing, designing, and managing factory‑automation systems, and includes detailed guidance on grounding, battery handling, and troubleshooting to ensure reliable and safe operation.

What's inside

  • Intended Audience
  • General Precautions
  • Safety Precautions
  • Operating Environment Precautions
  • Application Precautions
  • Unit Components and Specifications
  • Installation and Wiring
  • Using Programming Devices
  • Test Runs and Error Processing
  • Appendices

Specifications

I/O points10 to 120 per PC

Frequently asked questions

Who is the intended audience for the CPM2C operation manual?

The manual is intended for personnel in charge of installing, designing, and managing factory‑automation systems who have knowledge of electrical systems.

What safety step must be taken before working on a CPM2C unit?

Power must be turned off before attempting any disassembly or wiring work to avoid electric shock.

What is the maximum allowed grounding resistance when connecting the CPM2C?

Grounding resistance must not exceed 100 Ω.

Download PDF (2.2 MB)
