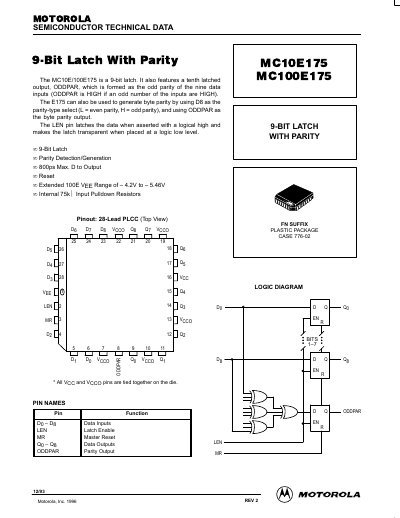

Motorola MC10E175/MC100E175 9-Bit Latch With Parity Datasheet
The document describes the MC10E175 and MC100E175, which are 9-bit latches featuring a tenth latched output (ODDPAR) that represents the odd parity of the nine data inputs. The device includes a Master Reset function and operates with extended voltage ranges for the 100E series.
Read onlineMotorola MC100E175 specifications
| Number of Data Inputs | 9-bit |
|---|---|
| Parity Output Function | ODDPAR (Odd Parity) |
| Max. D to Output Delay | 800ps |
| Package Type | 28-Lead PLCC |
Source: Motorola MC10E175/MC100E175 9-Bit Latch With Parity Datasheet
All Motorola MC100E175 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the ODDPAR output?
ODDPAR is HIGH if an odd number of the inputs are HIGH.
From: Motorola MC10E175/MC100E175 9-Bit Latch With Parity Datasheet
How does the device generate byte parity?
It uses D8 as the parity-type select and ODDPAR as the byte parity output.
From: Motorola MC10E175/MC100E175 9-Bit Latch With Parity Datasheet
What is the function of the ODDPAR output?
ODDPAR is HIGH if an odd number of the inputs are HIGH.
How is byte parity generated?
Use D8 as the parity-type select (L = even parity, H = odd parity) and ODDPAR as the byte parity output.
