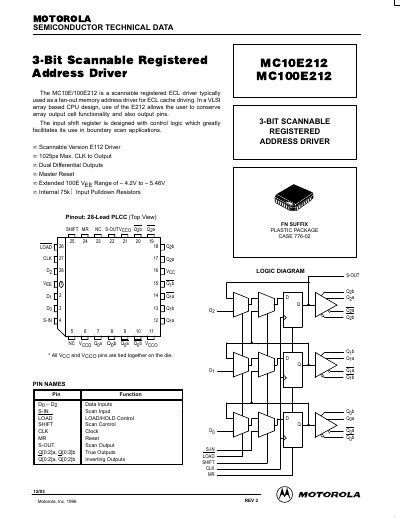

Motorola MC10E212/MC100E212 3-Bit Scannable Registered Address Driver Datasheet
The MC10E212 and MC100E212 are 3-bit scannable registered ECL drivers designed primarily as fan-out memory address drivers for ECL cache driving in VLSI array-based CPU designs. These devices utilize an input shift register with control logic to facilitate boundary scan applications, allowing users to conserve array output cell functionality and output pins.
Read onlineMotorola MC10E212 specifications
| Max. CLK to Output | 1025ps |
|---|---|
| Package Type | 28-Lead PLCC |
| Supply Voltage Range (100E) | -4.2V to -5.46V |
| Input Pulldown Resistors | 75kQ |
| Power Supply Current (10E) | 80 mA (typ) |
Source: Motorola MC10E212/MC100E212 3-Bit Scannable Registered Address Driver Datasheet
All Motorola MC10E212 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum clock to output delay?
The maximum clock to output delay is 1025ps.
From: Motorola MC10E212/MC100E212 3-Bit Scannable Registered Address Driver Datasheet
What is the supply voltage range for the MC100E212?
The MC100E212 operates with an extended voltage range of -4.2V to -5.46V.
From: Motorola MC10E212/MC100E212 3-Bit Scannable Registered Address Driver Datasheet
What is the primary application of this device?
It is typically used as a fan-out memory address driver for ECL cache driving.
From: MOTOROLA 3-Bit scannable registered address driver MC10E212 MC100E212 datasheet(1)
Does the input shift register support boundary scan?
Yes, it is designed with control logic that greatly facilitates its use in boundary scan applications.
From: MOTOROLA 3-Bit scannable registered address driver MC10E212 MC100E212 datasheet(1)
