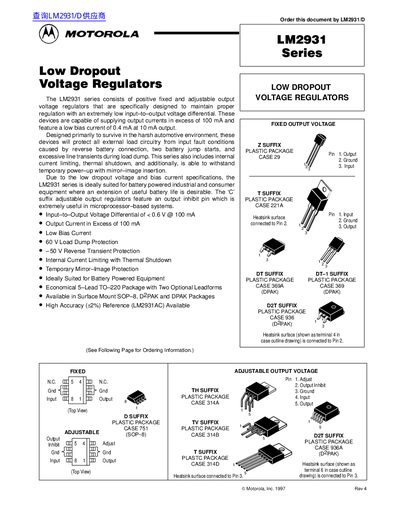

Motorola LM2931 Series Voltage Regulator Datasheet
The LM2931 series consists of positive fixed and adjustable output low‑dropout voltage regulators designed for automotive‑grade reliability. They provide over 100 mA output current, low bias current, and a variety of protection features such as load‑dump, reverse‑polarity, and thermal shutdown.
The document includes ordering information, maximum ratings, electrical characteristics, typical application circuits, performance graphs, and mechanical outline dimensions for the TO‑220, TO‑92, SOP‑8, DPAK and D2PAK packages.
Motorola LM293 specifications
| Input‑to‑Output Voltage Differential | < 0.6 V @ 100 mA |
|---|---|
| Maximum Output Current | > 100 mA |
| Low Bias Current | 0.4 mA at 10 mA output |
| Load‑Dump Protection | 60 V |
| Reverse Transient Protection | ‑50 V |
| Thermal Shutdown | Enabled |
All Motorola LM293 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What protection features are built into the LM2931 series?
The LM2931 series includes internal current limiting, thermal shutdown, over‑voltage, reverse‑polarity input protection, and temporary mirror‑image protection.
What is the recommended output capacitor condition for stability?
The output capacitor impedance |Z₀| must not exceed 0.4 Ω over the full operating temperature range.
What is the maximum single‑supply voltage for the LM393 series?
The LM393 series can operate from 2 V up to 36 V on a single supply.
What is the typical supply current of the LM393 comparator?
Typical supply current is about 0.4 mA, independent of the supply voltage.
