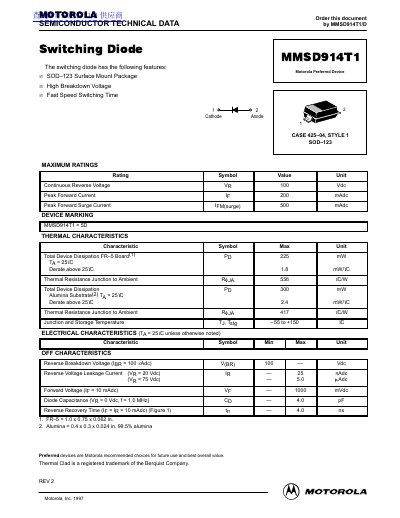

Motorola MMSD914T1 Switching Diode Datasheet
This document is a technical datasheet for the Motorola MMSD914T1 switching diode. It outlines key features such as the SOD-123 surface mount package, high breakdown voltage, and fast switching time. The datasheet provides maximum ratings, including a continuous reverse voltage of 100 V and a peak forward current of 200 mA.
The document details electrical characteristics like reverse recovery time and thermal properties for both FR-5 boards and alumina substrates. It also includes specific instructions for using the SOD-123 surface mount package, covering recommended footprints, power dissipation calculations, and soldering precautions to prevent device failure.
Motorola MMSD914T1 specifications
| Peak Forward Current | 200 mA |
|---|---|
| Package Type | SOD-123 |
| Junction Temperature Range | -55 to +150 °C |
All Motorola MMSD914T1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended board material for maximum power dissipation?
An alumina substrate or an aluminum core board such as Thermal Clad can double the power dissipation compared to a standard FR-5 board.
What is the maximum soldering temperature and time?
The soldering temperature and time shall not exceed 260°C for more than 10 seconds.
What is the maximum junction temperature?
The junction and storage temperature range from -55 to +150 °C.
What is the recommended soldering time limit?
The soldering temperature should not exceed 260°C for more than 10 seconds.
