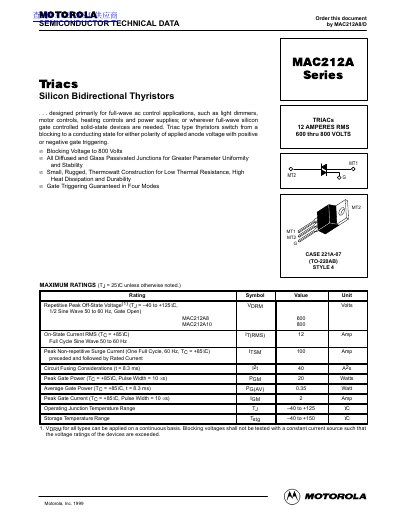

Motorola MAC212A Series Triac Datasheet
Datasheet 4 pages · 71 KB · EN
This document provides technical specifications for the Motorola MAC212A Series of silicon bidirectional thyristors (Triacs). These devices are designed primarily for full-wave AC control applications such as light dimmers, motor controls, heating controls, and power supplies. The series features diffused and glass passivated junctions for parameter uniformity and stability.
Read onlineMotorola MAC212A specifications
| Repetitive Peak Off-State Voltage | 600 Volts (MAC212A8) |
|---|---|
| Repetitive Peak Off-State Voltage | 800 Volts (MAC212A10) |
| On-State Current RMS | 12 Amp |
| Peak Non-repetitive Surge Current | 100 Amp |
| Operating Junction Temperature Range | -40 to +125 °C |
| Thermal Resistance (Junction to Case) | 2.0 °CAV |
All Motorola MAC212A documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum RMS current rating for these Triacs?
The devices are rated for an on-state current of 12 Amps RMS.
What is the maximum blocking voltage available in this series?
The MAC212A10 model supports a repetitive peak off-state voltage of 800 Volts.
