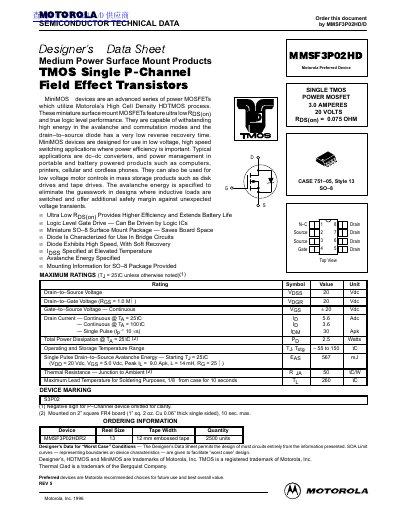

Motorola MMSF3P02HD P-Channel MOSFET Designer's Data Sheet
This document is a Designer's Data Sheet for the Motorola MMSF3P02HD, a single P-Channel MiniMOS field effect transistor. The device utilizes Motorola's High Cell Density HDTMOS process and is designed for low voltage, high speed switching applications where power efficiency is important. Typical applications include DC-DC converters, power management in portable products, and low voltage motor controls.
Read onlineMotorola MMSF3P02HD specifications
| Drain-to-Source Voltage | 20 Vdc |
|---|---|
| Drain Current — Continuous @ Ta = 25°C | 5.6 Adc |
| Operating and Storage Temperature Range | - 55 to 150 °C |
| Ultra Low RDS(on) | 0.075 Ohm |
| Package Type | SO-8 Surface Mount |
Source: Motorola MMSF3P02HD P-Channel MOSFET Designer's Data Sheet
All Motorola MMSF3P02HD documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical application for the MMSF3P02HD?
Typical applications are dc-dc converters, and power management in portable and battery powered products such as computers, printers, cellular and cordless phones.
From: Motorola MMSF3P02HD P-Channel MOSFET Designer's Data Sheet
Is the MMSF3P02HD a logic level device?
Yes, it features true logic level performance and can be driven by logic ICs.
From: Motorola MMSF3P02HD P-Channel MOSFET Designer's Data Sheet
What is the typical application for the MMSF3P02HD?
Typical applications include DC-DC converters, power management in portable and battery powered products, and low voltage motor controls.
Is the MMSF3P02HD a logic level device?
Yes, the device features true logic level performance and can be driven by logic ICs.
