The MC10E/100E175 is a 9-bit latch. It also features a tenth latched output, ODDPAR, which is formed as the odd parity of the nine data inputs (ODDPAR is HIGH if an odd number of the inputs are HIGH). The E175 can also be used to generate byte parity by using D8 as the parity-type select (L = even parity, H = odd parity), and using ODDPAR as the byte parity output. The LEN pin latches the data when asserted with a logical high and makes the latch transparent when placed at a logic low level.

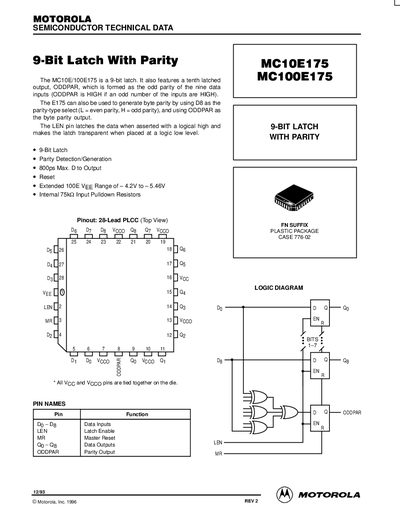

This document is a technical datasheet for the Motorola MC10E175 and MC100E175, which are 9-bit latches featuring a tenth latched output for odd parity. The devices include a parity detection/generation function where the ODDPAR output is HIGH if an odd number of inputs are HIGH. The MC100E series supports an extended voltage range of -4.2V to -5.46V.
| Max D to Output | 800ps |
|---|---|
| Voltage Range (100E) | -4.2V to -5.46V |
| Input Pulldown Resistors | 75kQ |
| Package Type | 28-Lead PLCC |
| Package Case Number | CASE 776-02 |
ODDPAR is HIGH if an odd number of the inputs are HIGH.
Use D8 as the parity-type select (L = even parity, H = odd parity) and ODDPAR as the byte parity output.
