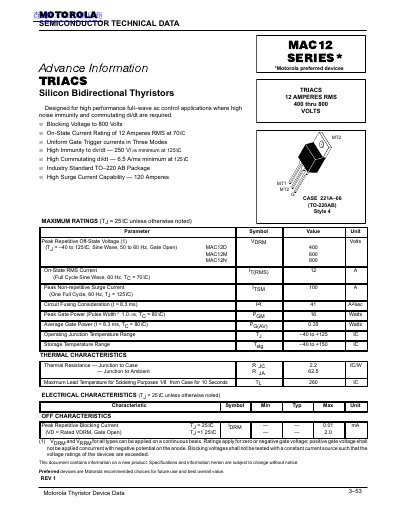

Motorola MAC12 Series Silicon Bidirectional Thyristors Datasheet
This document provides detailed specifications and characteristics for Motorola Silicon Bidirectional Thyristors, specifically the MAC12D, MAC12M, and MAC12NVDRM models. These devices are designed for high performance full-wave AC control applications where high noise immunity and commutating di/dt are required. Key features include blocking voltages up to 800 Volts, an on-state current rating of 12 Amperes RMS at 70 °C, and a high surge current capability of 120 Amperes maximum.
Read onlineMotorola MAC12 specifications
| Peak Repetitive Off-State Voltage | 400, 600, 800 Volts |
|---|---|
| On-State RMS Current | 12 A |
| Peak Non-repetitive Surge Current | 100 A |
| Operating Junction Temperature Range | -40 to +125 °C |
| Package Type | TO-220 AB |
Source: Motorola MAC12 Series Silicon Bidirectional Thyristors Datasheet
All Motorola MAC12 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the models included in this datasheet?
The document covers the MAC12D, MAC12M, and MAC12NVDRM models.
From: Motorola MAC12 Series Silicon Bidirectional Thyristors Datasheet
What is the minimum commutating di/dt rating?
The minimum commutating di/dt is 6.5 A/ms at 125°C.
From: Motorola MAC12 Series Silicon Bidirectional Thyristors Datasheet
What is the peak repetitive off-state voltage for MAC12D?
The peak repetitive off-state voltage (VDRM) for the MAC12D model is 400 Volts.
What is the maximum lead temperature for soldering purposes?
The maximum lead temperature for soldering purposes is 260 °C, measured 1/8" from the case for 10 seconds.
