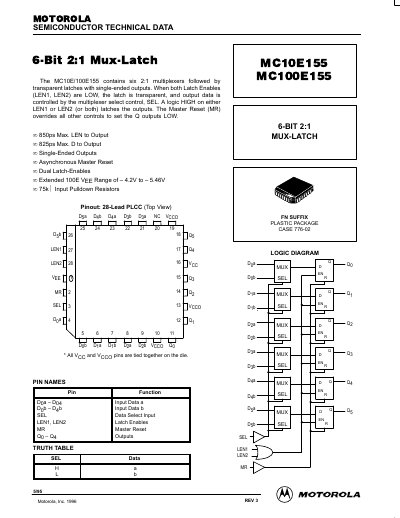

Motorola MC10E155/MC100E155 6-Bit 2:1 Mux-Latch Datasheet
This document is a technical datasheet for the Motorola MC10E155 and MC100E155 integrated circuits. These devices contain six 2:1 multiplexers followed by transparent latches with single-ended outputs. The datasheet provides a logic diagram, pinout description for the 28-lead PLCC package, and a truth table explaining the operation of the Latch Enables (LEN), Select (SEL), and Master Reset (MR) inputs.
Read onlineMotorola MC100E155 specifications
| Package Type | 28-Lead PLCC |
|---|---|
| Max LEN to Output MUX-Latch | 850ps |
| Max D to Output | 825ps |
| Input Pulldown Resistors | 75kQ |
| VEE Range (100E) | -4.2V to -5.46V |
Source: Motorola MC10E155/MC100E155 6-Bit 2:1 Mux-Latch Datasheet
All Motorola MC100E155 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What happens when both Latch Enables are LOW?
When both Latch Enables (LEN1, LEN2) are LOW, the latch is transparent, and output data is controlled by the multiplexer select control, SEL.
From: Motorola MC10E155/MC100E155 6-Bit 2:1 Mux-Latch Datasheet
How does the Master Reset function?
The Master Reset (MR) overrides all other controls to set the Q outputs LOW.
From: Motorola MC10E155/MC100E155 6-Bit 2:1 Mux-Latch Datasheet
