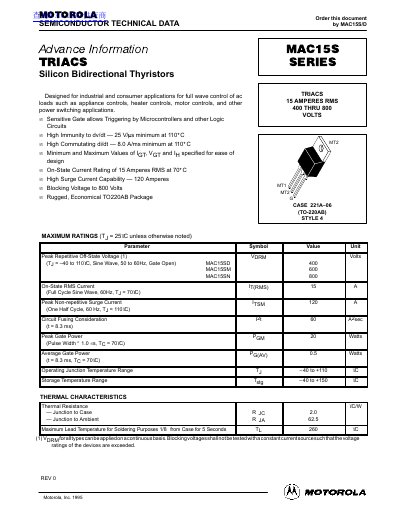

Motorola MAC15S Series Triac Datasheet
This document provides technical specifications for the Motorola MAC15S Series of Silicon Bidirectional Thyristors. These devices are designed for industrial and consumer applications, specifically for full wave control of AC loads such as appliance controls, heater controls, and motor controls. The series offers a current rating of 15 Amperes RMS and blocking voltages up to 800 Volts.
Read onlineMotorola MAC15S specifications
| On-State RMS Current | 15 A |
|---|---|
| Peak Non-repetitive Surge Current | 120 A |
| Blocking Voltage (MAC15SN) | 800 Volts |
| Operating Junction Temperature Range | -40 to +110 °C |
| Package Style | TO-220AB |
All Motorola MAC15S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum on-state RMS current rating for these TRIACs?
The devices have an on-state current rating of 15 Amperes RMS at 70°C.
What is the maximum blocking voltage for the MAC15SN model?
The MAC15SN model has a peak repetitive off-state voltage rating of 800 Volts.
What is the peak gate power for the MAC15S?
The peak gate power is 20 Watts for a pulse width less than 1.0 us at 70°C.
What is the critical rate of rise of off-state voltage?
The critical rate of rise of off-state voltage is 25 V/us minimum at 110°C.
