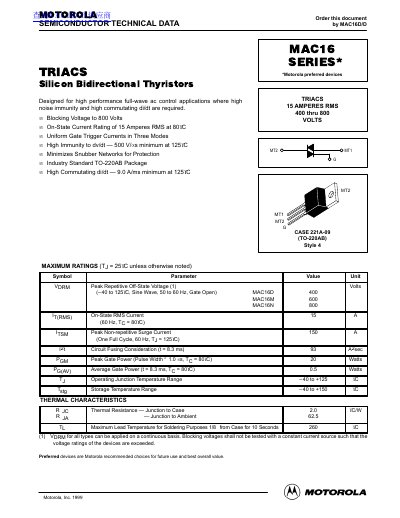

Motorola MAC16 Series Silicon Bidirectional Thyristors Datasheet
This document provides technical data for the Motorola MAC16 series of silicon bidirectional thyristors. These devices are designed for high-performance full-wave AC control applications requiring high noise immunity and high commutating di/dt capabilities.
The datasheet lists maximum ratings, including blocking voltages up to 800 Volts and an on-state current rating of 15 Amperes RMS at 80°C. It also details electrical characteristics such as gate trigger currents and voltages for positive and negative modes, along with dynamic parameters like the critical rate of rise of off-state voltage.
Motorola MAC16 specifications
| Blocking Voltage (MAC16N) | 800 Volts RMS |
|---|---|
| On-State Current Rating | 15 Amperes RMS at 80°C |
| High Commutating di/dt | 9.0 A/ms minimum at 125°C |
| dv/dt Immunity | 500 V/us minimum at 125°C |
| Operating Junction Temperature Range | -40 to +125 °C |
Source: Motorola MAC16 Series Silicon Bidirectional Thyristors Datasheet
All Motorola MAC16 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum on-state RMS current rating for these thyristors?
The device has an on-state current rating of 15 Amperes RMS at 80°C.
From: Motorola MAC16 Series Silicon Bidirectional Thyristors Datasheet
What is the minimum critical rate of rise for off-state voltage?
The thyristor has a high immunity to dv/dt with a minimum rating of 500 V/us at 125°C.
From: Motorola MAC16 Series Silicon Bidirectional Thyristors Datasheet
What is the package type for the MAC16 Series?
The devices use an Industry Standard TO-220AB Package.
What is the maximum junction temperature?
The operating junction temperature range extends up to +125 °C.
