Motorola MC10E164/MC100E164 Datasheet
Datasheet 5 pages · 64 KB · EN

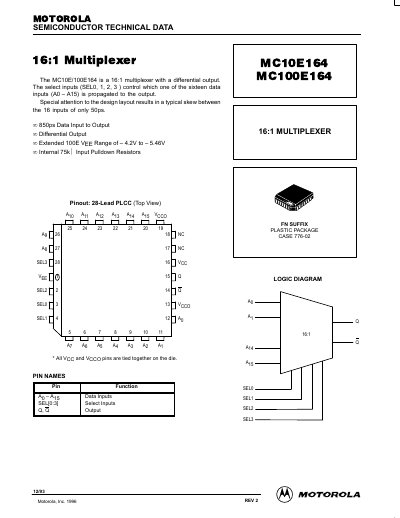

The document describes the MC10E164 and MC100E164 as 16:1 multiplexers featuring a differential output. These devices utilize select inputs (SELO through SEL3) to control which of the sixteen data inputs are propagated to the output, with a typical skew between inputs of only 50ps.
Read onlineMotorola MC100E164 specifications
| Number of Data Inputs | 16 |
|---|---|
| Output Type | Differential Output |
| Typical Input Skew | 50ps |
| Propagation Delay (Data to Output) | 850ps |
| Operating Voltage Range (100E Series) | -4.2V to -5.46V |
| Package Type | 28-Lead PLCC |
All Motorola MC100E164 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical skew between the 16 inputs?
The typical skew between the 16 inputs is only 50ps.
What are the select input names?
The select inputs are named SELO, SEL1, SEL2, and SEL3.
What is the typical skew between the 16 inputs?
The typical skew between the 16 inputs is 50ps.
From: Motorola MC10E164/MC100E164 16:1 Multiplexer Datasheet
What is the data input to output delay?
The data input to output delay is 850ps.
From: Motorola MC10E164/MC100E164 16:1 Multiplexer Datasheet
