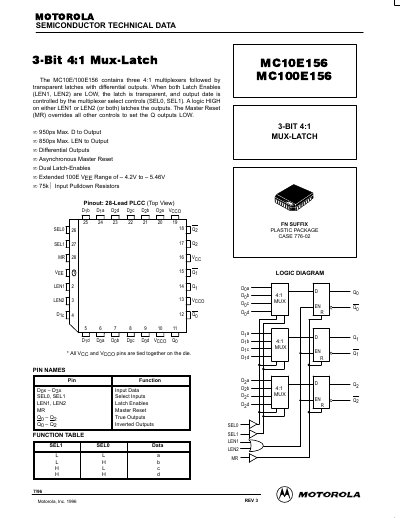

Motorola MC10E156/MC100E156 3-Bit 4:1 Mux-Latch Datasheet
The MC10E156/MC100E156 is a 3-bit 4:1 Mux-Latch device containing three 4:1 multiplexers followed by transparent latches with differential outputs. The device features asynchronous master reset, dual latch enables, and extended 100E VEE range. It is available in a 28-lead PLCC package.
Read onlineMotorola MC100E156 specifications
| Max. D to Output MUX-Latch | 950ps |
|---|---|
| Max. LEN to Output | 850ps |
| Package Type | 28-Lead PLCC |
| Input Pulldown Resistors | 75kQ |
Source: Motorola MC10E156/MC100E156 3-Bit 4:1 Mux-Latch Datasheet
All Motorola MC100E156 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the Master Reset (MR)?
The Master Reset overrides all other controls to set the Q outputs LOW.
From: Motorola MC10E156/MC100E156 3-Bit 4:1 Mux-Latch Datasheet
When does the latch become transparent?
The latch is transparent when both Latch Enables (LEN1, LEN2) are LOW.
From: Motorola MC10E156/MC100E156 3-Bit 4:1 Mux-Latch Datasheet
What is the function of the Master Reset (MR)?
The Master Reset overrides all other controls to set the Q outputs LOW.
From: Motorola MC10E156/MC100E156 3-Bit 4:1 Mux-Latch Datasheet
When are the outputs latched?
Outputs are latched when a logic HIGH is present on either LEN1 or LEN2 (or both).
From: Motorola MC10E156/MC100E156 3-Bit 4:1 Mux-Latch Datasheet
