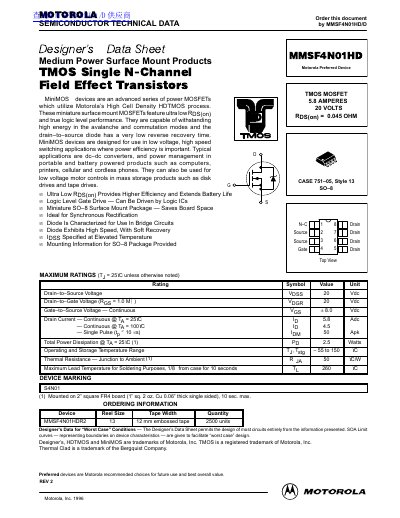

Motorola MMSF4N01HD MOSFET Designer's Data Sheet
This document is a Designer's Data Sheet for the Motorola MMSF4N01HD, a medium power surface mount N-channel enhancement mode field effect transistor (TMOS). The device utilizes Motorola's High Cell Density HDTMOS process to achieve ultra-low on-resistance and logic-level gate drive capabilities. It is designed for low voltage, high speed switching applications such as DC-DC converters, power management in portable electronics, and motor controls.
The datasheet provides comprehensive electrical characteristics including maximum ratings, static and dynamic parameters, and source-drain diode specifications. Typical values are listed alongside minimums and maximums for various conditions at 25°C. The document also includes typical performance curves illustrating on-resistance versus gate voltage, transfer characteristics, and capacitance variations.
Motorola MMSF4N01HD specifications
| Drain-to-Source Voltage (Vdss) | 20 Vdc |
|---|---|
| Continuous Drain Current @ Ta = 25°C | 5.8 Adc |
| Static Drain-Source On-Resistance (Typical) | 0.045 Ohm |
| Total Power Dissipation @ Ta = 25°C | 25 Watts |
| Operating and Storage Temperature Range | -55 to 150 °C |
| Input Capacitance (Typical) | 425 pF |
| Turn-On Delay Time (Typical, Vgs=10V) | 13 ns |
All Motorola MMSF4N01HD documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical on-resistance of the MMSF4N01HD?
The typical static drain-source on-resistance (RDS(on)) is 0.045 Ohms at Vgs = 4.5V and Id = 4.0A.
Is the MMSF4N01HD logic level?
Yes, it features true logic level performance and can be driven by logic ICs.
What is the maximum drain current at 25°C?
The maximum continuous drain current at 25°C is 5.8 Amperes.
What is the maximum drain-to-source voltage?
The device can withstand a maximum drain-to-source voltage of 20 Volts.
