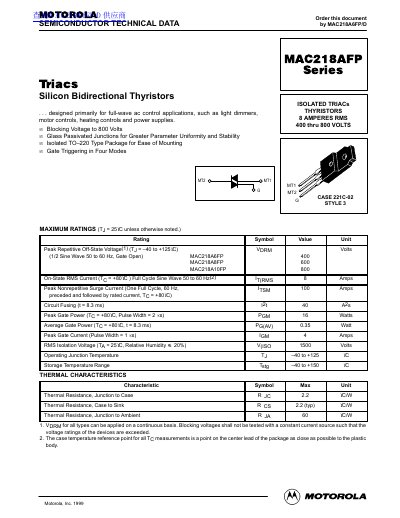

Motorola MAC218AFP Series Isolated Triac Datasheet
This document provides technical data for the Motorola MAC218AFP Series of Silicon Bidirectional Thyristors (Isolated Triacs). These devices are designed primarily for full-wave AC control applications, such as light dimmers, motor controls, heating controls, and power supplies. The series offers blocking voltages ranging from 400 to 800 volts and an RMS current rating of 8 amperes.
Read onlineMotorola MAC218AFP specifications
| Peak Repetitive Off-State Voltage | 400, 600, or 800 Volts |
|---|---|
| On-State RMS Current | 8 Amps |
| Peak Nonrepetitive Surge Current | 100 Amps |
| RMS Isolation Voltage | 1500 Volts |
| Operating Junction Temperature | -40 to +125 °C |
| Thermal Resistance, Junction to Case | 22 °C/W |
