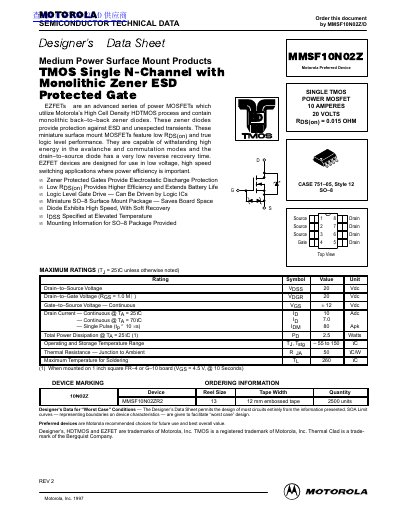

Motorola MMSF10N02Z Power MOSFET Designer's Data Sheet
This document is a Designer's Data Sheet for the Motorola MMSF10N02Z, a single TMOS Power MOSFET in an SO-8 surface mount package. The device utilizes Motorola's High Cell Density HDTMOS process and includes monolithic back-to-back zener diodes to provide protection against electrostatic discharge (ESD) and unexpected transients.
Read onlineMotorola MMSF10N02Z specifications
| Drain-to-Source Voltage | 20 Vdc |
|---|---|
| Continuous Drain Current @ Ta = 25°C | 10 Adc |
| Total Power Dissipation @ Ta = 25°C | 25 Watts |
| Operating and Storage Temperature Range | - 55 to 150 °C |
| Static Drain-to-Source On-Resistance (Vgs = 4.5 V, Id = 10 A) | 9.015 OHM |
| Package Type | SO-8 Surface Mount |
Source: Motorola MMSF10N02Z Power MOSFET Designer's Data Sheet
All Motorola MMSF10N02Z documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What type of protection does the MMSF10N02Z offer?
The device contains monolithic back-to-back zener diodes that provide protection against ESD and unexpected transients.
From: Motorola MMSF10N02Z Power MOSFET Designer's Data Sheet
Can the MMSF10N02Z be driven by logic ICs?
Yes, it features logic level gate drive and can be driven by logic ICs.
From: Motorola MMSF10N02Z Power MOSFET Designer's Data Sheet
What type of protection do EZFETs provide?
EZFETs contain monolithic back-to-back zener diodes that provide protection against ESD and unexpected transients.
From: Motorola MMSF10N02Z Power MOSFET Designer's Data Sheet
Can the MMSF10N02Z be driven by logic ICs?
Yes, it features logic level gate drive and can be driven by logic ICs.
From: Motorola MMSF10N02Z Power MOSFET Designer's Data Sheet
