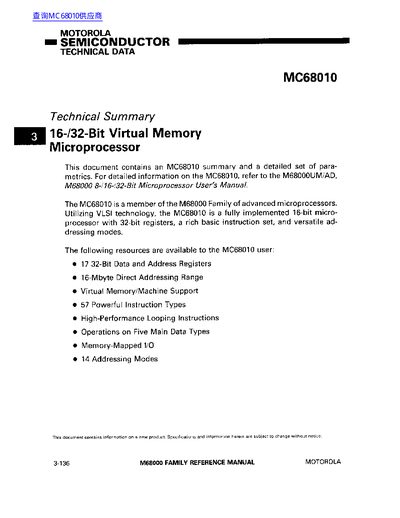

Motorola MC68010 Technical Data Summary
Datasheet 37 pages · 966 KB · EN
This document provides a technical summary and detailed parameter set for the Motorola MC68010, a 16-bit microprocessor with 32-bit registers and virtual memory support. It describes the processor's architecture, including its 17 general-purpose registers, addressing modes, and instruction set designed to support structured high-level languages.
Read onlineMotorola MC6801 specifications
| Data Bus Width | 16-bit |
|---|---|
| Address Bus Width | 24-bit |
| Direct Addressing Range | 16-Mbyte |
| Instruction Types | 57 |
| Addressing Modes | 14 |
| General-Purpose Registers | 17 |
All Motorola MC6801 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the MC68010 compatible with the MC68000?
Yes, the MC68010 is pin-for-pin compatible with the MC68000.
What data types does the MC68010 support?
It supports bits, BCD digits, bytes, words, and long words.
What is the difference between the MC6801 and MC6803?
The MC6803 can be considered as an MC6801 operating in modes 2 or 3.
Is the MC6801 compatible with the M6800 family?
Yes, it includes upward-source and object-code compatibility with the M6800.
