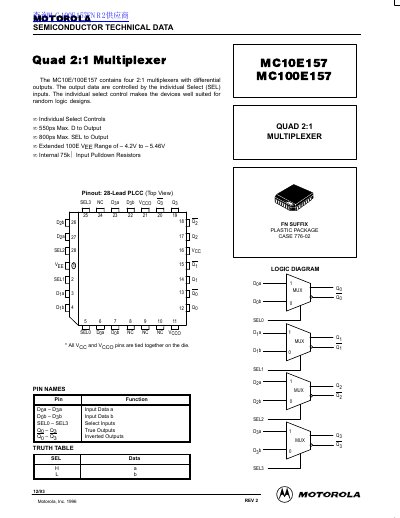

Motorola MC10E157/MC100E157 Quad 2:1 Multiplexer Datasheet
This document is a technical datasheet for the MC10E157 and MC100E157, which are quad 2:1 multiplexers featuring differential outputs. The devices are designed for random logic designs and include individual select controls for each multiplexer. They operate with an extended VEE range of -4.2V to -5.46V and feature internal 75kΩ input pulldown resistors.
Read onlineMotorola MC100E157 specifications
| Max. D to Output | 550ps |
|---|---|
| Max. SEL to Output | 800ps |
| VEE Range | -4.2V to -5.46V |
| Input Pulldown Resistors | 75kΩ |
| Package Type | 28-Lead PLCC |
Source: Motorola MC10E157/MC100E157 Quad 2:1 Multiplexer Datasheet
