Start here

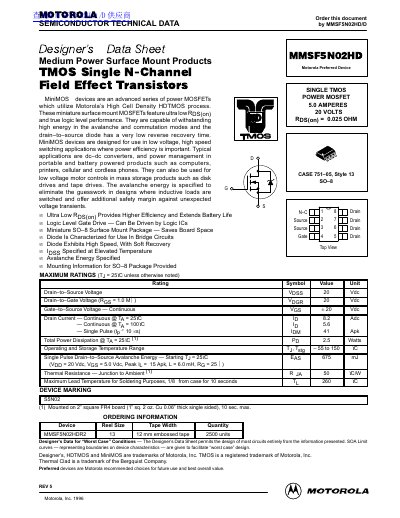

MOTOROLA MMSF5N02HD handbook
This document is a Designer's Data Sheet for the Motorola MMSF5NO2HD, a medium power surface mount MOSFET. The device utilizes Motorola's High Cell Density (HDTMOS) process to provide ultra-low on-resistance and true logic-level performance in an SO-8 package.
The datasheet provides maximum ratings, electrical characteristics for off-state and on-state conditions, dynamic parameters such as capacitance and gate charge, and switching characteristics. It includes typical electrical characteristic curves illustrating drain current, on-resistance variation with temperature, and capacitance versus voltage.
Motorola MMSF5N02HD specifications
| Drain-to-Source Voltage (Vdss) | 20 Vdc |
|---|---|
| Continuous Drain Current @ Ta = 25°C | 8.2 Adc |
| Operating Temperature Range | -55 to 150 °C |
| Static Drain-to-Source On-Resistance (Typical) | 0.025 Ohm |
| Turn-On Delay Time (Typical) | 30 ns |
Source: MOTOROLA MMSF5N02HD handbook
All Motorola MMSF5N02HD documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the package type for this device?
The device uses a Miniature SO-8 Surface Mount Package.
Is this device suitable for logic level gate drive?
Yes, it features true logic level performance and can be driven by logic ICs.
What are the typical applications for the MMSF5N02HD?
Typical applications include DC-DC converters, power management in portable and battery powered products like computers and phones, and low voltage motor controls.
What is the maximum continuous drain current at 25°C?
The maximum continuous drain current at 25°C is 8.2 Amperes.
