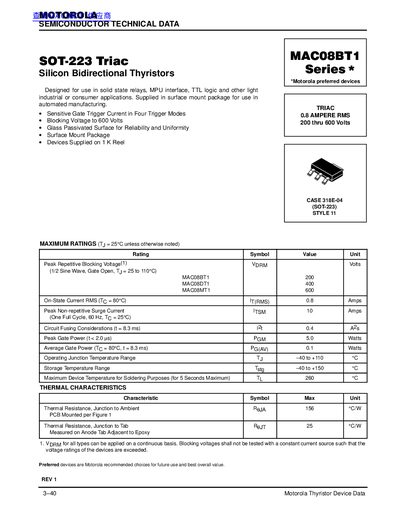

Motorola MAC08BT1 Triac Datasheet
This document provides technical specifications for the Motorola MAC08BT1, a Silicon Bidirectional Thyristor (Triac) in a surface-mount SOT-223 package. It is designed for use in solid-state relays, MPU interfaces, and other light industrial or consumer applications.
The datasheet details maximum ratings such as a peak repetitive blocking voltage of 200 Volts and an on-state current of 0.8 Amps RMS. It also includes comprehensive electrical characteristics, thermal resistance data, and typical performance curves for gate trigger current and voltage across various operating conditions.
Motorola MAC08BT1 specifications
| Peak Repetitive Blocking Voltage | 200 Volts |
|---|---|
| On-State Current RMS | 0.8 Amps |
| Peak Non-repetitive Surge Current | 10 Amps |
| Operating Junction Temperature Range | -40 to +110 °C |
| Thermal Resistance, Junction to Ambient | 156 °C/W |
| Gate Trigger Current (Continuous dc) | 10 mA |
All Motorola MAC08BT1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the package type for the MAC08BT1?
The device is supplied in a surface mount SOT-223 package.
What is the maximum device temperature for soldering purposes?
The maximum device temperature for soldering purposes is 260 °C for a maximum of 5 seconds.
What is the package type for the MACOSBT1 series?
The devices are supplied in a surface mount SOT-223 package.
What are the applications for the MACOSBT1 Triac?
They are designed for use in solid state relays, MPU interface, TTL logic, and other light industrial or consumer applications.
