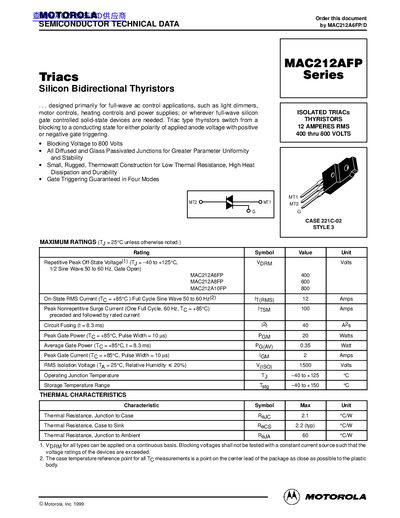

Motorola MAC212AFP Series Triac Datasheet
This document provides technical specifications for the Motorola MAC212AFP Series of silicon bidirectional thyristors. These devices are designed primarily for full-wave AC control applications such as light dimmers, motor controls, heating controls, and power supplies. The series features isolated triacs with gate triggering guaranteed in four modes.
Read onlineMotorola MAC212AFP specifications
| Repetitive Peak Off-State Voltage (MAC212A6FP) | 400 Volts |
|---|---|
| On-State RMS Current | 12 Amps |
| Peak Nonrepetitive Surge Current | 100 Amps |
| Operating Junction Temperature Range | -40 to +125 °C |
| Thermal Resistance, Junction to Case (RθJC) | 24 °C/W |
All Motorola MAC212AFP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the maximum blocking voltages for this series?
The devices offer blocking voltage ratings of 400, 600, and 800 volts depending on the specific model.
What is the maximum RMS current rating at +85°C?
The On-State RMS Current is rated for 12 Amps when the case temperature is +85°C.
What are the main applications for these Triacs?
They are designed primarily for full-wave AC control applications, such as light dimmers, motor controls, heating controls and power supplies.
What is the difference between the MAC212FP and MAC212AFP series?
The MAC212FP Series guarantees gate triggering in three modes, while the MAC212AFP Series guarantees triggering in four modes.
What are the main applications for these Triacs?
They are designed primarily for full-wave AC control applications such as light dimmers, motor controls, heating controls and power supplies.
What is the peak gate current rating?
The peak gate current (Igm) is rated at 2 Amps.
