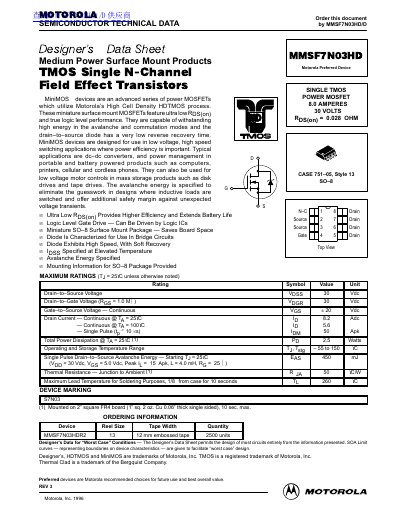

MOTOROLA MMSF7N03HD handbook
This document is a Designer's Data Sheet for the Motorola MMSF7NO3HD, a MiniMOS single N-channel field effect transistor (FET). The device utilizes Motorola's High Cell Density (HDTMOS) process to provide ultra-low on-resistance and true logic-level performance suitable for low-voltage, high-speed switching applications.
Key specifications include a maximum drain-to-source voltage of 30V and a continuous drain current of 8.2A at 25°C. The device is housed in a miniature SO-8 surface mount package and is designed for use in power management circuits, such as DC-DC converters, and for motor controls in portable products.
Motorola MMSF7N03HD specifications
| Drain-to-Source Voltage | 30 Vdc |
|---|---|
| Continuous Drain Current (25°C) | 8.2 Adc |
| Continuous Drain Current (100°C) | 5.6 Adc |
| Total Power Dissipation (25°C) | 25 Watts |
| Operating Temperature Range | -55 to 150 °C |
| Package Type | SO-8 |
