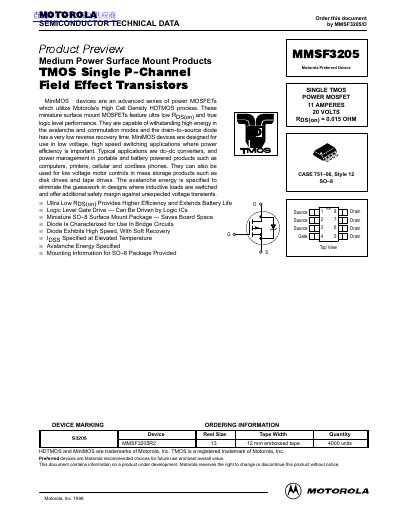

Motorola MMSF3205 Medium Power Surface Mount MOSFET Datasheet
This document provides technical specifications for the Motorola MMSF3205, a medium power surface mount P-Channel Single TMOS MiniMOS Field Effect Transistor. The device utilizes Motorola's High Cell Density (HDTMOS) process to achieve ultra-low on-resistance and true logic-level performance in compact SO-8 packages.
The datasheet outlines maximum ratings such as a 20V drain-to-source voltage and operating temperatures from -55°C to 150°C. It includes detailed electrical characteristics for off-state, on-state, dynamic, switching, and source-drain diode behaviors, along with specific instructions for using the SO-8 surface mount package regarding footprint design and soldering profiles.
Motorola MMSF3205 specifications
| Drain-to-Source Voltage (Vpss) | 20 V |
|---|---|
| Gate-to-Source Voltage (Continuous) | +/- 12 V |
| Operating and Storage Temperature Range | -55 to 150 °C |
| Total Power Dissipation @ Ta = 25°C (FR-4) | 1.56 Watts |
| Pulsed Drain Current (IDM) | 43 A |
Source: Motorola MMSF3205 Medium Power Surface Mount MOSFET Datasheet
All Motorola MMSF3205 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical application for this device?
Typical applications include dc-dc converters and power management in portable products such as computers, printers, and cellular phones.
From: Motorola MMSF3205 Medium Power Surface Mount MOSFET Datasheet
What is the maximum soldering temperature limit?
The soldering temperature shall not exceed 260°C for more than 10 seconds.
From: Motorola MMSF3205 Medium Power Surface Mount MOSFET Datasheet
What is the typical on-resistance of the MMSF3205?
The typical static drain-to-source on-resistance (RDS(on)) is 9.015 Ohms.
From: Motorola MMSF3205 Medium Power Surface Mount MOSFET Datasheet
Is the MMSF3205 a P-Channel or N-Channel device?
The MMSF3205 is a Single P-Channel TMOS Field Effect Transistor.
From: Motorola MMSF3205 Medium Power Surface Mount MOSFET Datasheet
