Key facts
- Brand
- Motorola
- Model
- MC100E154
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-09
Start here

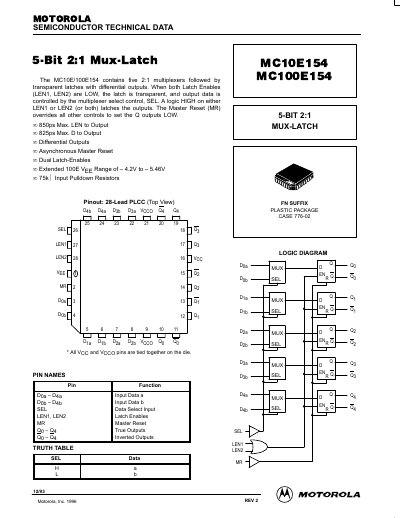

Motorola MC10E154/MC100E154 Datasheet
Datasheet 5 pages · 67 KB · EN
This document is a technical datasheet for the Motorola MC10E154 and MC100E154 integrated circuits. The device contains five 2:1 multiplexers followed by transparent latches with differential outputs. Key features include asynchronous master reset, dual latch enables, and extended voltage ranges for the 100E series.
Read onlineMotorola MC100E154 specifications
| Number of Multiplexers | 5 |
|---|---|
| Package Type | 28-Lead PLCC |
| Max LEN to Output Delay | 850ps |
| Min VEE Range (100E) | -4.2V to -5.46V |
| Input Pulldown Resistors | 75kΩ |
All Motorola MC100E154 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the Master Reset (MR)?
The Master Reset overrides all other controls to set the Q outputs LOW.
When are the latches transparent?
The latch is transparent when both Latch Enables (LEN1, LEN2) are LOW.
What is the function of the Master Reset (MR)?
The Master Reset overrides all other controls to set the Q outputs LOW.
How many multiplexers and latches are in the device?
The MC10E/100E154 contains five 2:1 multiplexers followed by transparent latches.
