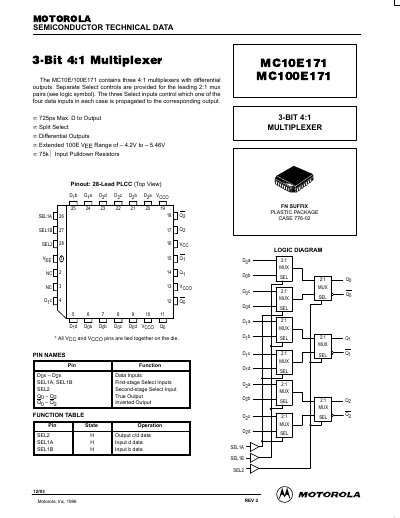

Motorola MC10E171/MC100E171 3-Bit 4:1 Multiplexer Datasheet
This document is a technical datasheet for the Motorola MC10E171 and MC100E171, which are 3-bit 4:1 multiplexers featuring differential outputs. The devices contain three 4:1 multiplexers with separate select controls for the leading 2:1 mux pairs, allowing specific data inputs to be propagated to the corresponding outputs.
Read onlineMotorola MC100E171 specifications
| Number of Multiplexers | Three 4:1 multiplexers |
|---|---|
| Package Type | 28-Lead PLCC |
| Max Propagation Delay | 725 ps |
| Input Pulldown Resistors | 75kQ |
| VEE Range (100E) | -4.2V to 5.46V |
| Operating Temperature | 0°C to 85°C |
Source: Motorola MC10E171/MC100E171 3-Bit 4:1 Multiplexer Datasheet
All Motorola MC100E171 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the SEL2 input?
The SEL2 input controls the second-stage select operation.
From: Motorola MC10E171/MC100E171 3-Bit 4:1 Multiplexer Datasheet
How many data inputs does each multiplexer have?
Each multiplexer has four data inputs.
From: Motorola MC10E171/MC100E171 3-Bit 4:1 Multiplexer Datasheet
What is the maximum delay from data to output?
The maximum delay from data to output is 725ps.
From: Motorola MC10E171/MC100E171 3-Bit 4:1 Multiplexer Datasheet
What is the VEE voltage range for the MC100E series?
The extended VEE range for the MC100E series is -4.2V to 5.46V.
From: Motorola MC10E171/MC100E171 3-Bit 4:1 Multiplexer Datasheet
