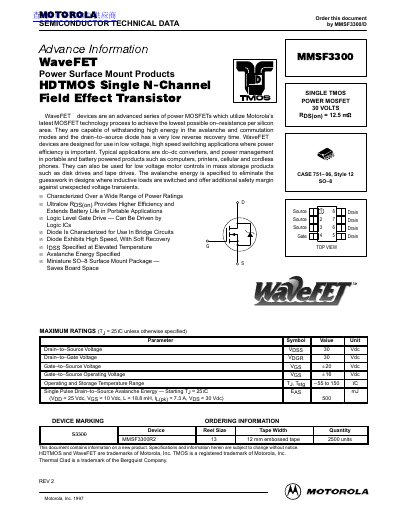

Motorola MMSF3300 Power MOSFET Datasheet
This document provides technical specifications for the Motorola MMSF3300, a single N-channel Field Effect Transistor (FET) utilizing WaveFET technology. The device is designed for low voltage, high speed switching applications where power efficiency is critical, such as in DC-DC converters and portable battery-powered products. It features an ultralow on-resistance (RDS(on)) and a drain-to-source diode with a very low reverse recovery time.
Read onlineMotorola MMSF3300 specifications
| Drain-to-Source Voltage | 30 V |
|---|---|
| Continuous Drain Current (Ta = 25°C) | 11.5 A |
| Total Power Dissipation (Ta = 25°C) | 2.5 Watts |
| Thermal Resistance Junction-to-Ambient | 50 °C/W |
| Static Drain-to-Source On-Resistance | 10 to 12.5 mΩ |
| Operating and Storage Temperature Range | -55 to 150 °C |
All Motorola MMSF3300 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical application for the MMSF3300?
Typical applications are dc-dc converters, and power management in portable and battery powered products such as computers and cellular phones.
What is the maximum continuous drain current at 25°C?
The maximum continuous drain current at 25°C is 11.5 Adc.
What are the typical applications for this MOSFET?
Typical applications include dc-dc converters, power management in portable products like computers and phones, and low voltage motor controls.
What is the operating temperature range?
The device operates and stores within a temperature range of -55 to 150 °C.
