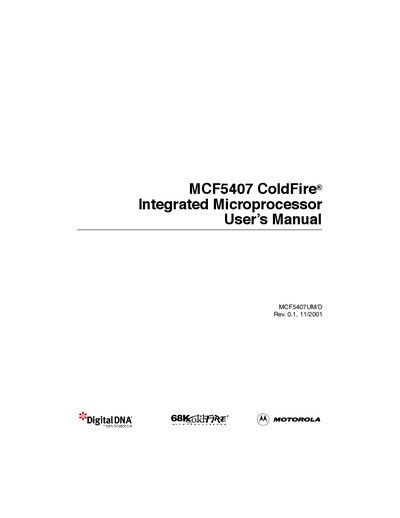

Motorola MCF5407 ColdFire Integrated Microprocessor User Manual
This manual describes the MCF5407 ColdFire® Integrated Microprocessor, covering its core architecture, hardware multiply‑accumulate unit, local memory, and debug support. It also details the System Integration Module (SIM) including the PLL, interrupt controller, chip‑select logic, and DRAM controller.
The peripheral section explains the DMA controller, timer, UART modules, and parallel‑port I/O, followed by hardware interface information such as mechanical data, signal descriptions, bus operation, JTAG test access, and electrical specifications. Appendices provide migration guidance, memory map, a glossary, and an index.
Motorola MCF5407 specifications
| Core | Version 4 ColdFire processor core |
|---|---|
| Instruction cache | 16‑Kbyte |
| Data cache | 8‑Kbyte |
| On‑chip SRAM | Two 2‑Kbyte SRAMs |
| DMA channels | Four fully‑programmable channels |
| UARTs | Two UARTs, one supports synchronous operations |
| Timers | Two 16‑bit general‑purpose multimode timers |
| Dhrystone performance | 316 MIPS at 220 MHz, 233 MIPS at 162 MHz |
| Package | 208‑pin plastic QFP |
| Core clock range | 100‑162 MHz |
| PLL input range | 25‑54 MHz |
| Operating temperature | -40 °C to 85 °C (162 MHz) / up to 70 °C (220 MHz) |
Source: Motorola MCF5407PB/D Integrated ColdFire Microprocessor Product Brief
All Motorola MCF5407 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum Dhrystone performance of the MCF5407?
The MCF5407 delivers 316 Dhrystone MIPS at 220 MHz and 233 Dhrystone MIPS at 162 MHz.
From: Motorola MCF5407PB/D Integrated ColdFire Microprocessor Product Brief
How many DMA channels does the MCF5407 provide?
It includes four fully‑programmable DMA channels.
From: Motorola MCF5407PB/D Integrated ColdFire Microprocessor Product Brief
What warranty does Motorola provide for the MCF5407?
Motorola makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose.
From: Motorola MCF5407 ColdFire Integrated Microprocessor User Manual
What is the revision and date of this manual?
The manual is Revision 0.1 dated November 2001.
From: Motorola MCF5407 ColdFire Integrated Microprocessor User Manual
