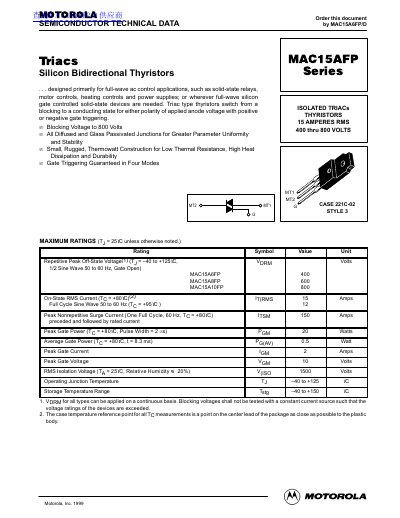

Motorola MAC15AFP Series Silicon Bidirectional Thyristors Datasheet
This document provides technical data for the Motorola MAC15AFP Series of Silicon Bidirectional Thyristors. These devices are designed primarily for full-wave AC control applications such as solid-state relays, motor controls, heating controls, and power supplies. The series includes models with blocking voltages ranging from 400 to 800 volts.
Read onlineMotorola MAC15AFP specifications
| Repetitive Peak Off-State Voltage | 400, 600, or 800 Volts |
|---|---|
| On-State RMS Current | 15 Amps |
| Peak Nonrepetitive Surge Current | 150 Amps |
| Operating Junction Temperature | -40 to +125 °C |
| Thermal Resistance, Junction to Case | 2 °C/W |
Source: Motorola MAC15AFP Series Silicon Bidirectional Thyristors Datasheet
All Motorola MAC15AFP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the primary applications for these silicon bidirectional thyristors?
These devices are designed primarily for full-wave AC control applications such as solid-state relays, motor controls, heating controls, and power supplies.
From: Motorola MAC15AFP Series Silicon Bidirectional Thyristors Datasheet
What is the maximum RMS current rating for the MAC15AFP Series?
The devices have a rated On-State RMS Current of 15 Amps.
From: Motorola MAC15AFP Series Silicon Bidirectional Thyristors Datasheet
