This data sheet provides information about the MC10E/100E171 3-Bit 4:1 MULTIPLEXER, including pin names, functions, and voltage ranges

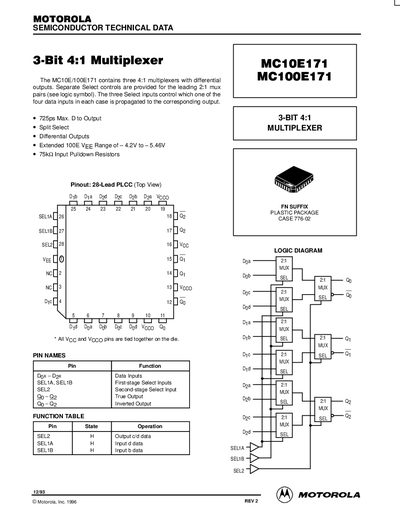

This document is a technical datasheet for the Motorola MC10E171 and MC100E171 integrated circuits. The devices contain three 4:1 multiplexers with differential outputs and separate select controls for the leading 2:1 mux pairs. Key features include a maximum delay from data to output of 725ps, split select logic, and an extended VEE range for the 100E series from -4.2V to 5.46V.
| Max. D to Output Delay | 725ps |
|---|---|
| Input Pulldown Resistors | 75kQ |
| VEE Range (MC100E) | -4.2V to 5.46V |
| Package Type | 28-Lead PLCC |
| Input HIGH Current | 150 uA |
| Propagation Delay (SEL2) | 350 to 700 ps (typical 550 ps) |
The maximum delay from data to output is 725ps.
The extended VEE range for the MC100E series is -4.2V to 5.46V.
The device contains three 4:1 multiplexers.
