The MC10E/100E156 is a 3-BIT 4:1 MUX-LATCH circuit with differential outputs, asynchronous master reset, dual latch-enables, extended 100E VEE range of -4.2V to -5.46V, and 75kΩ input pulldown resistors.

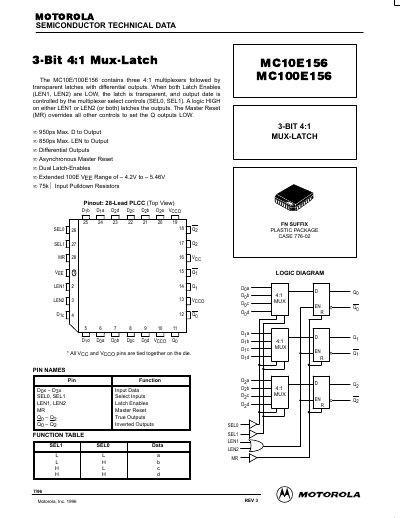

This document is a technical datasheet for the Motorola MC10E156 and MC100E156 integrated circuits. The devices contain three 4:1 multiplexers followed by transparent latches with differential outputs. Key features include asynchronous master reset, dual latch enables, and extended voltage ranges for the 100E series.
| Max. D to Output MUX-Latch | 950ps |
|---|---|
| Max. LEN to Output | 850ps |
| Input Pulldown Resistors | 75kQ |
| Package Type | 28-Lead PLCC |
| Supply Voltage Range (100E) | -4.2V to -5.46V |
The Master Reset overrides all other controls to set the Q outputs LOW.
Outputs are latched when a logic HIGH is present on either LEN1 or LEN2 (or both).
